Horn Antenna Standard Gain / High Gain / Wide Band

Waveguide Horn Antenna - Standard Gain & Wide Band

Standard and High Gain Horn Antenna For RF Microwave

Narda-MITEQ manufactures a high quality line of Standard Gain Horn Antenna, and High Gain Horn Antenna that are Linearly Polarized, lightweight and corrosion resistant.

Sometimes called Pyramidal Horn Antenna, microwave horns like Narda-MITEQ's horns are based on typical specifications for standard and high gain pyramidal horn antenna. The horn antenna models listed below are the most common gain values available, typically 10dB, 15dB, & 20dB gain horn antenna.

Other gain values and horn antenna sizes can be designed to your requirements.  Please call us with your specifications to discuss your horn antenna requirements with one of our RF design engineers.

Waveguide Horn Antenna:
E Plane Sectoral Horn Antenna
H Plane Sectoral Horn Antenna

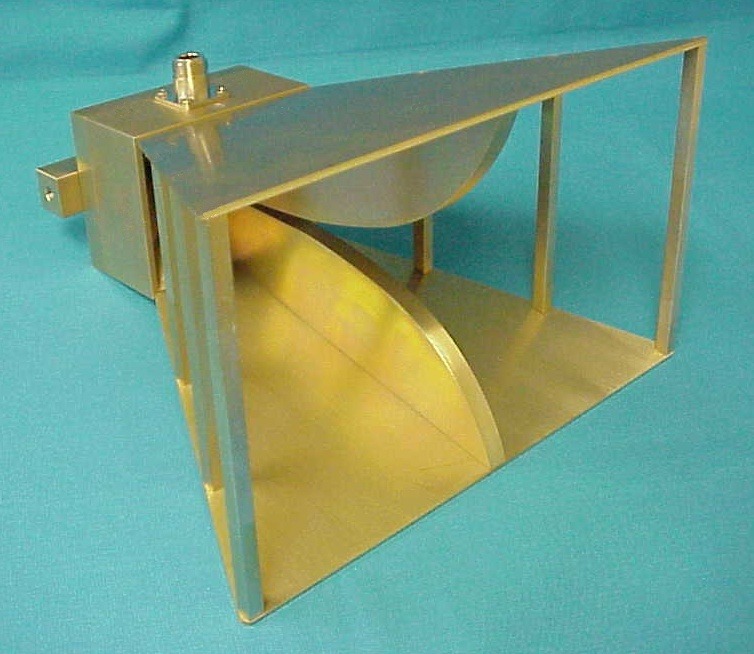

Coaxial Input Horn Antenna:
High Gain Coaxial Input Horn Antenna
Standard Gain Coaxial Input Horn Antenna

Standard Gain Horn Antenna
Waveguide Standard Gain Horn Antenna
Waveguide Standard Gain Horn Antenna

Standard Gain Horn Antenna

Special Custom Waveguide Horn Antenna
Special Custom Waveguide Horn Antenna

Special Narda-MITEQ Horn Antenna

Waveguide Horn Antenna with Radome Cover
Waveguide Horn Antenna with Radome Cover

Horn Antenna with Radome Cover

Waveguide Horn Antenna Tripod and Bracket Mount
Waveguide Horn Antenna Tripod and Bracket Mount

Tripod and Bracket Mounting

Standard Horn Antenna Features:

• Lightweight aluminum material
• Narda-MITEQ microwave horns are Linearly Polarized
• Low VSWR.
• See example: Typical VSWR data for a 28-440-6 horn
• Input is waveguide flange. Multiple types available, see Narda-MITEQ Flanges

Optional Horn Antenna Features:

• Calibration data - click for typical calibration report PDF
• Radome covers - By adding a /RD to the basic part number Narda-MITEQ can supply all models with Radome protection. Depending on the aperture size of the horn antenna, Narda-MITEQ Radomes will either be a strong Teflon-fiberglass material mounted in a frame as shown in this photo or a very low dielectric material custom fitted and epoxied in place. Based on the material selected for the radome all designs have minimal impact on the horn antenna performance. Radome Applications Tables.
• Tripod mounting
• Mounting Bracket Options: click for Horn Mounting Application
• To illustrate mounting orientation, view example Typical Mounting Option
• Coax Input Horns - Horns With Integrated SMA or Type-N Coax Inputs
• Alternative coaxial mating Narda-MITEQ Right Angle Adapter or Endlaunch Adapter.
• Custom Mounts available - View custom pole-mount application
• Review the Horn Antenna PDF files in tables for outline drawings and data.

Narda-MITEQ MICROWAVE HORN ANTENNA
GENERAL SPECIFICATIONS

Electrical
Gain: 10dB, 15dB, 20dB standard, others available, consult factory for details.
Typical Gain Variation: +/- 1.5 to +/- 2.0dB
RF Power:
For Standard Rectangular Waveguide sizes.
Without Waveguide to Coax adapter or Radome.
Max power is equal to the Max power of the input waveguide size.
See: Waveguide Raw Information Page
For example for WR62 Horns  1.4KW cw and 460KW peak.
When Waveguide to Coax adapters are used the Max power rating of the Coax Connection becomes the limiting factor.
See Waveguide Adapters pages for power rating of suitable adapters.

For Right Angle Adapters see:  Right Angle WG To Coax Adapters
For End Launch Adapters see: Endlaunch WG To Coax Adapters
Mechanical
Body: Aluminum
Flanges: Per order, see Narda-MITEQ Standard Flanges for choices
Finish: Unique corrosion resistant 316 stainless steel epoxy coating
IAW MIL-F-14072 (above WR22)
Applicable Mil-Specs
General:
Product Specific:



Horn Antennas - Typical Gain Patterns
Horn Antenna - Typical 10dB Gain Waveguide Horn Antenna - Typical 15 dB Gain Waveguide Horn Antenna - Typical 20 dB Gain



Standard Gain Horn Antenna - Standard Models
WG Size Frequency
 (GHz)
Model No.* Gain
(dB)

3dB Beam
Width***

Est.
Weight

Waveguide Standard Gain Horn Antenna - Diagram Far Field
(M)

@ Low to
High
Freq.
Outline
Drawing
PDF
Typical
Data
PDF
E-Plane H-Plane Size (In)**
A B C**
WR975 0.75 - 1.12 975-441-2 14 34° 39°   22.58 19.60 24.0 1.65 - 2.46   Data
WR650 1.12 - 1.70 650-440-2 10 65.1° 45.6° 5.0 lbs 12.14 6.07 15.98 0.71 - 1.08 Dwg Data
WR650 1.12 - 1.70 650-441-2 15 31.1° 29.0° 16 lbs 19.69 13.78 29.38 1.87 - 2.84   Data
WR510 1.45 - 2.20 510-440-2 10 52.4° 52.4°   8.07 6.00 13.00 0.4 - 0.62
WR510 1.45 - 2.20 510-441-2 15 30.8° 30.8°   14.15 10.68 26 1.25 - 1.90
WR430 1.70 - 2.60 430-440-2 10 64.8° 45.4° 2.3 lbs 8.00 4.00 10.50 0.47 - 0.72 Dwg Data
WR430 1.70 - 2.60 430-441-2 15 33.1° 32.0° 15.2 lbs 11.60 8.30 23.00 0.98 - 1.51 Dwg Data
WR430 1.70 - 2.60 430-442-2 20 17.3° 17.4° 26.5 lbs 22.0 16.0 40.5 3.54 - 5.42 Dwg Data
WR340 2.20 - 3.30 340-440-2 10 60.0° 49.3°   5.71 3.43 9.00 0.31 - 0.46 Dwg
WR340 2.20 - 3.30 340-441-2 15 32.2° 30.8° 5.2 lbs 9.45 6.69 15.63 0.85 - 1.27 Dwg Data
WR340 2.20 - 3.30 340-442-2 20 18.5° 16.3°   18.79 11.81 35.0 3.34 - 5.01 Dwg
WR284 2.60 - 3.95 284-440-6 10 50.8° 54.1° 1.0 lbs 4.33 3.46 7.50 0.21 - 0.32 Dwg Data
WR284 2.60 - 3.95 284-441-6 15 31.0° 30.6° 2.8 lbs 7.96 5.83 15.34 0.71 - 1.08 Dwg Data
WR284 2.60 - 3.95 284-442-6 20 17.2° 16.5° 8.5 lbs 15.57 10.67 29.75 2.71 - 4.12 Dwg Data
WR229 3.30 - 4.90 229-440-2 10 58.6° 51.9°   3.62 2.36 6.45 0.19 - 0.28 Dwg
WR229 3.30 - 4.90 229-441-2 15 32.7° 32.4° 2.8 lbs 6.00 4.41 10.40 0.51 - 0.76 Dwg Data
WR229 3.30 - 4.90 229-442-2 20 17.1° 16.7° 5.0 lbs 12.25 8.60 23.50 2.13 - 3.16 Dwg Data
WR187 3.95 - 5.85 187-440-6 10 55.0° 54.1°   2.89 2.12 5.50 0.14 - 0.21 Dwg Data
WR187 3.95 - 5.85 187-441-6 15 33.8° 33.3°   4.88 3.57 9.40 0.40 - 0.60 Dwg Data
WR187 3.95 - 5.85 187-442-6 20 18.9° 19.2° 2.5 lbs 8.92 6.53 14.925 1.35 - 2.00 Dwg Data
WR159 4.90 - 7.05 159-440-2 10 59.8° 48.3°   2.68 1.58 4.28 0.15 - 0.22 Dwg Data
WR159 4.90 - 7.05 159-441-2 15 31.3° 30.8° 2.4 lbs 4.33 3.15 8.00 0.40 - 0.57 Dwg Data
WR159 4.90 - 7.05 159-442-2 20 14.3° 16.9°   9.80 7.64 11.73 2.03 - 2.91 Dwg Data
WR137 5.85 - 8.20 137-440-2 10 55.1° 54.2°   2.02 1.48 3.15 0.10 - 0.14 Dwg
WR137 5.85 - 8.20 137-441-2 15 33.7° 33.2°   3.42 2.50 6.51 0.29 - 0.41 Dwg Data
WR137 5.85 - 8.20 137-442-2 20 18.7° 18.8° 1.5 lbs 6.26 4.57 12.19 0.99 - 1.38 Dwg Data
WR112 7.05 - 10.0 112-440-6 10 56.8° 55.2°   1.63 1.18 2.55 0.08 - 0.11 Dwg
WR112 7.05 - 10.0 112-441-6 15 32.4° 32.0°   2.93 2.15 6.65 0.26 - 0.37 Dwg Data
WR112 7.05 - 10.0 112-442-6 20 19.3° 19.3° 0.75 lbs 4.97 3.64 10.78 0.75 - 1.06 Dwg Data
WR102 7.00 - 11.0 102-440-6 10 55.5° 54.1°   1.58 1.14 3.00 0.07 - 0.12 Dwg
WR102 7.00 - 11.0 102-441-6 15 29.6° 29.3°   3.04 2.23 6.00 0.28 - 0.44 Dwg
WR102 7.00 - 11.0 102-449-6/17 17 26.2° 25.3°   3.60 2.54 5.25 0.39 - 0.61
WR102 7.00 - 11.0 102-442-6 20 17.0° 16.7°   5.57 3.94 11.13 1.00 - 1.57 Dwg
WR90 8.20 - 12.4 90-440-6 10 48.5° 47.4°   1.58 1.15 2.01 0.09 - 0.13 Dwg Data
WR90 8.20 - 12.4 90-441-6 15 29.3° 29.0° 0.25 lbs 2.66 1.95 5.46 0.25 - 0.38 Dwg Data
WR90 8.20 - 12.4 90-442-6 20 16.1° 16.5° 0.75 lbs 4.87 3.62 10.06 0.84 - 1.27 Dwg Data
WR75 10.0 - 15.0 75-440-6 10 50.2° 49.2°   1.26 0.92 1.94 0.07 - 0.10 Dwg
WR75 10.0 - 15.0 75-441-6 15 35.4° 28.5°   2.25 1.33 4.69 0.22 - 0.33 Dwg Data
WR75 10.0 - 15.0 75-442-6 20 16.3° 17.2° 0.6 lbs 3.88 2.98 8.00 0.65 - 0.97 Dwg Data
WR62 12.4 - 18.0 62-440-6 10 55.3° 50.9° 0.5 lbs 1.00 0.68 1.00 0.05 - 0.08 Dwg
WR62 12.4 - 18.0 62-441-6 15 30.1° 31.2° 0.15 lbs 1.69 1.30 2.46 0.15 - 0.22 Dwg Data
WR62 12.4 - 18.0 62-449-6/17.5 17.5 23.0° 24.5°   2.19 1.72 3.46 0.25 - 0.37
WR62 12.4 - 18.0 62-442-6 20 18.8° 18.9° 0.25 lbs 2.88 2.11 5.75 0.44 - 0.64 Dwg Data
WR51 15.0 - 22.0 51-440-6 10 55.1° 54.2°   0.77 0.56 1.43 0.04 - 0.06 Dwg Data
WR51 15.0 - 22.0 51-441-6 15 32.0° 31.8°   1.36 1.00 2.84 0.12 - 0.17 Dwg
WR51 15.0 - 22.0 51-442-6 20 16.9° 18.0° 0.35 lbs 2.51 1.93 4.88 0.41 - 0.51 Dwg Data
WR42 18.0 - 26.5 42-440-6 10 58.0° 57.0° 0.1 lbs 0.60 0.44 1.25 0.03 - 0.04 Dwg
WR42 18.0 - 26.5 42-441-6 15 31.3° 31.5°   1.14 0.85 2.37 0.10 - 0.15 Dwg Data
WR42 18.0 - 26.5 42-449-6/16 16 27.9° 27.9°   1.29 0.96 3.42 0.13 - 0.19
WR42 18.0 - 26.5 42-442-6 20 17.5° 17.8° 0.13 lbs 2.13 1.56 4.00 0.35 - 0.52 Dwg Data
WR34 22.0 - 33.0 34-440-6 10 54.1° 53.2° 0.2 lbs 0.53 0.39 1.13 0.03 - 0.04 Dwg
WR34 22.0 - 33.0 34-441-6 15 23.1° 40.8°   0.95 0.70 2.12 0.09 - 0.13 Dwg Data
WR34 22.0 - 33.0 34-442-6 20 17.0° 17.4° 0.29 lbs 1.76 1.29 3.56 0.29 - 0.44 Dwg Data
WR28 26.5 - 40.0 28-440-6 10 54.2° 54.4° 0.01 lbs 0.42 0.315 1.00 0.02 - 0.03 Dwg
WR28 26.5 - 40.0 28-441-6 15 32.1° 31.3°   0.76 0.55 1.87 0.07 - 0.10 Dwg Data
WR28 26.5 - 40.0 28-442-6 20 16.7° 18.3° 0.13 lbs 1.38 1.01 3.12 0.22 - 0.33 Dwg Data
WR22 33.0 - 50.0 22-443-6R 23 9.6° 11.7° 0.25 lbs 2.170 1.656 4.07 0.669 - 1.013
WR19 40.0 - 60.0 19-443-6R 23 9.5° 12.0°   1.821 1.39 3.48 0.561 - 0.586
WR15 50.0 - 75.0 15-443-6R 23 9.5° 12.0° 0.20 lbs 1.432 1.094 2.78 0.440 - 0 662   Data
WR12 60.0 - 90.0 12-443-6R 23 9.5° 12.0°   1.182 0.902 2.35 0.310 - 0.541
WR10 75.0 - 110.0 10-443-6R 23 9.5° 12.0° 0.15 lbs 0.969 0.74 1.94 0.298 - 0.445
WR 8 90.0 - 140.0 08-443-6R 23 9.5° 12.0°   0.775 0.591 1.56 0.236 - 0.362
WR5 140.0 - 220.0 05-443-6R 23 9.5° 12.0°   0.494 0.377 1.04 0.147 - 0.284

Ordering Information
Waveguide Standard Gain Horn Antenna

WR -Mod -F /Opt
Example part number:  90 -441 -6 /CAL
Waveguide Size: (WR)
WR5 thru WR975 available

Basic Model No.: (-Mod)
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

Optional Features: (/Opt) ****
/CAL = Calibration Report
/RD = Radome Cover - See Photo - Radome Applications Tables
/BR = Bracket For Mounting


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system to the left.

Above models are not supplied with calibration data.  Select /CAL option to receive actual Gain vs. Frequency taken in the far field.  Click this link for a sample of data: "Calibration Data Sample"

** Overall length can vary depending on flange type.

*** Gain and 3dB Beam width values have been calculated by computer simulation.

**** More than one option per Horn is possible. For example:
90-441-6/CAL/RD/BR would contain all of the described options



High Gain Horn Antenna - Standard Models
WG Size Frequency
 (GHz)
Model No. Gain
(dB)
3dB Beam
Width***
Est.
Weight
High Gain - Standard Model - Horn Antennas Far Field(M)
@ Low to
High Freq.
Outline
Drawing
PDF
Typical
Data
PDF
E-Plane H-Plane Size (In)**
A B C**
WR284 2.60 - 3.95 284-443-6 24 7.9° 9.6° 60 lbs 31.10 25.98 72.00 10.8 – 16.4
WR229 3.30 - 4.90 229-443-2 24 7.7° 9.4°   28.35 20.47 64.50 11.4 – 16.9
WR187 3.95 - 5.85 187-443-6 24 7.2° 9.7° 40 lbs 26.38 18.90 58.00 11.8 – 17.5
WR159 4.90 - 7.05 159-443-2 24 7.2° 10.8°   24.41 17.72 51.00 12.5 – 18.1
WR137 5.85 - 8.20 137-443-2 24 7.6° 10.1° 20 lbs 17.32 12.50 37.00 7.5 – 10.6
WR112 7.05 - 10.0 112-443-6 24 9.8° 10.9° 3.13 lbs 11.00 7.50 21.50 3.7 – 5.2
WR102 7.00 - 11.0 102-443-6 24 9.5° 10.8°   10.63 7.40 21.00  3.4 – 5.3
WR90 8.20 - 12.4 90-443-6 24 8.8° 10.6° 3.13 lbs 10.0 7.00 20.20 3.5 – 5.3 Dwg
WR75 10.0 - 15.0 75-443-6 24 8.9° 10.5°   8.07 5.73 17.00 2.8 – 4.2
WR62 12.4 - 18.0 62-443-6 24 9.4° 10.7° 1.8 lbs 6.10 4.44 13.00 2.0 – 2.9 Dwg1 Dwg2 Data
WR51 15.0 - 22.0 51-443-6 24 10.1° 8.6°   5.28 3.98 12.00 1.8 – 2.6
WR42 18.0 - 26.5 42-443-6 25 8.1° 9.5°   4.45 3.54 11.05 1.53 – 2.3 Dwg Data
WR34 22.0 - 33.0 34-443-6 25 8.6° 9.6°   3.70 2.68 9.00 1.3 – 1.94
WR28 26.5 - 40.0 28-443-6 25 8.3° 9.7°   2.97 2.34 7.10 1.0 – 1.52 Dwg Data
WR22 33.0 - 50.0 22-443-6R 23 9.6° 11.7° 0.25 lbs 2.170 1.656 4.07 0.67 – 1.01
WR19 40.0 - 60.0 19-443-6R 23 9.5° 12.0°   1.821 1.39 3.48 0.57 – 0.86
WR15 50.0 - 75.0 15-443-6R 23 9.5° 12.0° 0.20 lbs 1.432 1.094 2.78 0.44 – 0.66
WR12 60.0 - 90.0 12-443-6R 23 9.5° 12.0°   1.182 0.902 2.35 0.36 – 0.54
WR10 75.0 - 110.0 10-443-6R 23 9.5° 12.0° 0.15 lbs 0.969 0.74 1.94 0.30 – 0.44
WR 8 90.0 - 140.0 08-443-6R 23 9.5° 12.0°   0.775 0.591 1.56 0.23 – 0.36
WR 5 140.0 - 220.0 05-443-6R 23 9.5° 12.0°   0.494 0.377 1.04 0.15 – 0.23

Ordering Information
Waveguide High Gain Horn Antenna

WR -Mod -F /Opt
Example part number:  90 -443 -6 /CAL
Waveguide Size: (WR)
WR5 thru WR975 available

Basic Model No.: (-Mod)
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

Optional Features: (/Opt) ****
/CAL = Calibration Report
/RD = Radome Cover - See Photo - Radome Applications Tables
/BR = Bracket For Mounting


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system to the left.

Above models are not supplied with calibration data.  Select /CAL option to receive actual Gain vs. Frequency taken in the far field.  Click this link for a sample of data: "Calibration Data Sample"

** Overall length can vary depending on flange type.

*** Gain and 3dB Beam width values have been calculated by computer simulation.

**** More than one option per Horn is possible. For example:
90-443-6/CAL/RD/BR would contain all of the described options



Wide-Band Horn Antenna

Standard Features:

   • Lightweight aluminum material
   • Narda-MITEQ microwave horns are Linearly Polarized
   • Low VSWR
   • Input is W/G flange or Coaxial connector, depending on model.
   • Brackets for all wide band models standard, see drawings.

Optional Features:

   • Calibration data - Typical calibration report
   • Radome covers

WIDE BAND HORN ANTENNA - GENERAL SPECIFICATIONS

Electrical
Gain: 10, 15, 20 standard, others available, consult factory for details.
Typical Gain Variation: +/- 1.5 to +/- 2.0dB
Mechanical
Body: Aluminum
Connectors: Stainless Steel
Flanges: Per order, see Narda-MITEQ Std. Flanges for choices
Finish: Unique corrosion resistant 316 stainless steel epoxy coating
IAW MIL-F-14072 (above WR22)

Low freq. horn
150-442EM-NF
Wide Band Horn
Wide Band Horn
Wide Band Horn
Wide Band Horn

Wide Band Horn Antenna

Wide Band Horn

Input
W/G Size
or Coax.
Conn.
Type
Freq.
(GHz)
Model No. Gain (dB)
Low to
High Freq
3 dB Beam
 Width*
[Low to
High Freq.]
Test
Dist.
(M)***
Far
Field
(M)***
Est.
Weight
A B C** D Outline Typical Data
E-Plane
(deg.)
H-Plane
(deg.)
TYPE-N 0.7 - 18 07-18-440-NF 1.4-15 48 30   7.14 3.5 lbs 9.6 5.6   11.0 Dwg Data
TYPE-N 0.75 - 1.12 975-441-NF 12.2-15.1 40-28 46-32   2.458 20 lbs 22.58 19.60   23.7 Dwg Data
TYPE-N 1.0 - 2.5 150-441EM-NF 9-11 45-21 51-23 1.6 2.6   15.50 13.30 13.13 16.65 Dwg Data
TYPE-N 1.0 - 2.5 150-442EM-NF 17-20 17-9 23-11   13.5   35.50 35.50 75.2 78.7 Dwg
TYPE-N 1.0 - 12.0 1-12-440EM-NF 8-12 63-21 61-20 1 4.7   9.50 5.40 6.94 7.6 Dwg Data
7/16 (F) 2.0 - 4.0 2-4-442EM-7/16 17-22 25-13 21-12   6.053 25 lbs 18.78 11.81 40.02   Dwg
7/16 (F) 4.0 - 6.0 4-6-442EM-7/16 17.5-20.5 23-15.5 23-16   2.055 3.5 lbs 8.92 6.53 18.25   Dwg
7/16 (F) 6.0 - 8.0 6-8-442EM-7/16 18-20 22-16.5 22-16.6   1.349 2.5 lbs 6.26 4.57 15.25   Dwg
WRD250 2.5 - 7.5 250-441-C3 7-13 59-22 58-22 1 1   5.25 3.84 6.73 - Dwg
TYPE-N 2.5 - 7.5 250-441EM-NF 7-13 59-22 58-22 1 1 2.0 lbs 5.25 3.84 6.73 8.0 Dwg Data
WRD250 2.5 - 7.5 250-442-C3 18-20 17-9 17-16 3 15.6   22.0 15.0 33.4 - Dwg Data
TYPE-N 2.5 - 8.0 250-442EM-NF 18-20 17-9 17-9 3 16.665 23 lbs 22.0 15.0 33.4 36.0 Dwg Data
WRD650 6.5 - 18.0 650-442-C3 19.0-24 16-8 16-13   3.796   7.0 5.00 12.13   Dwg
TYPE-N 6.5 - 18.0 650-442EM-NF 19.0-24 16-8 16-13   3.796   7.0 5.00 12.13 13.55 Dwg
WRD750 7.5 - 18.0 750-442-C3 20.5-24 16-8 16-13   3.796 2.3 lbs 7.00 5.00 12.13 - Dwg
TYPE-N 7.5 - 18.0 750-442EM-NF 20.5-24 16-8 16-13   3.796   7.00 5.00 12.13 13.55 Dwg Data
WRD180 18.0 - 40.0 180-442-C3 14-19 32-15 30-15 1 0.38   1.47 1.05 2.47 -
K-TYPE (F) 18.0 - 40.0 180-442A-KF 14-19 32-15 30-15 1 0.38 1.6 oz 1.47 1.05 2.47 3.23  .pdf Data



Horn Antenna Accessories

tripod

Horn Antenna Tripod with markings in degrees
Horn Antenna Tripod with Markings in Degrees - Click For Larger Image

Narda-MITEQ’s TP-3W Tripod is a great option for those who require a reliable way to mount our horn antennas. These durable and weather-proof tripods have a standard ¼-20 camera mount. They are made out of Eastern Hard Rock Maple, a hard light-weight vibration damping wood, which optimizes stability. The wooden construction will also decrease any reflections on side lobes, since wood will not reflect any incoming or outgoing waves. The bracket supplied with the horn to be mounted makes it simple to change the elevation angle of the horn, while the ¼-20 mounting screw makes it easy to change the azimuth angle of the horn.

All available Narda-MITEQ microwave horns may be mounted using our tripod. Please note: Bracket Option ( /BR ) must be specified when ordering horn antenna for tripod mounting.

Model No. Folded Height (in.) Max. Height (in.) Weight (lbs.)
TP-3W 40" 62" 11



Primary Sidebar

Search for:
NardaMITEQ.com

Components Menu

›   Coaxial Components
›   Ka-Band Satcom Components
›   Space Qualified Components
›   Waveguide Components

Latest News and Videos

  • Narda-MITEQ Re-Certified By NQA for ISO-9001:2015

  • Home
  • Coaxial Components
  • Waveguide Components
  • Ka-Band Components
  • Space Qualified Components

Copyright © 2025 · Narda-MITEQ
