Cable Length Tolerances

Coaxial Cable Length Tolerances

Measuring Cable Lengths and Tolerances

L3Harris Narda-ATM can supply all your cabling needs. As always, please feel free to call us and discuss your needs with one of our design engineers.

See Also:
View This Page As A PDF

How To Measure Cable Length And Length Tolerances

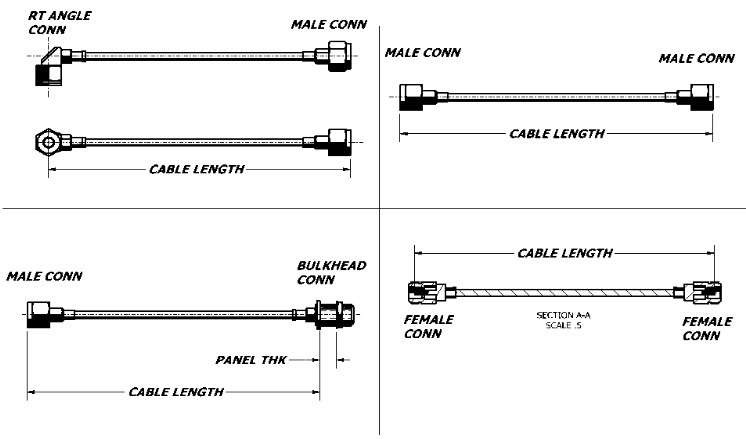

Cable measurements are taken differently based on the connector type:
Male Connector:  Measure Tip To Tip
Female Connector:  Measure Pin To Pin
Connector Goes Through Panel:  Measure Where It Mounts To Panel
 Cable Length Tolerances



Cable Length
Inches
Cable Length
Feet
Tolerance
 0" to 60" 0" to 5' +0.50"
61" to 120" 5'-1" to 10' +1.0"
121" to 480" 10'-1" to 40' +2.0"
481" & up 40'-1" & up +3.0"
