Waveguide to Coaxial Right Angle Adapters

Waveguide To Coaxial Right Angle Adapters

Right Angle Waveguide To Coax Adapters

Narda-MITEQ manufactures Waveguide to Coax Right Angle Adapters covering the entire frequency range for Rectangular Waveguides and Double Ridge Waveguides, with multiple flange and coaxial connector types and configurations available.

We offer Standard Full Band Models and Precision Low VSWR Models with SMA, Type-N, K-Type, 2.4mm, 2.9mm, TNC, SC and 7/16" connectors.

We also offer a line of High Power Waveguide To Coaxial Right Angle Adapters here.

For more information feel free to call us and discuss your needs for Waveguide to Coax Right Angle Adapters with one of our design engineers.

Waveguide To Coaxial Adapters:
Double Ridge To Coax Endlaunch
WG To Coax Endlaunch
WG To Coax Precision Endlaunch
WG To Coax Short Endlaunch
WG To Coax High Power Right Angle
WG To WG Transition Adapters

Ka-Band:
Ka-Band WG To Coax Adapters

Waveguide To Coaxial Right Angle Adapters
Precision Waveguide To Coaxial Right Angle Adapters
Precision Waveguide To Coaxial Right Angle Adapters
  • Full Waveguide Frequency Range
  • Multiple Flange Types available
  • Other connectors such as SMA (M), Type N (M), SC, TNC, and 7/16 available.  Consult factory for details.
GENERAL SPECIFICATIONS -
RECTANGULAR WAVEGUIDE TO COAX ADAPTERS

Electrical
VSWR: 1.25 Max (WR22 1.35 max)
Precision Models:  1.15 Max

RF Connectors: K-Type, SMA, Type-N, SC, TNC, and 7/16" available
Mechanical
Body: Aluminum/Copper-Brass (per order)
Flanges: Multiple types available - see Narda-MITEQ Std. Flanges
Operation Temp:
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
MIL-DTL-22641 including temperature -55C to +125C
Options
Pressure seal Units: Units sealed to hold 10 psi.  Add "/PT" to model number.
Example: P/N 650-251A-2
Sealed Becomes P/N: 650-251A-2/PT



Standard Full Band Right Angle Adapters
Waveguide to Coaxial  (SMA, Type-K, & 2.4mm)
WG Size Freq. (GHz) *Model No. Coax
Connector
VSWR
(Max.)
Power
CW
(Watts)
Peak
Power
(kW)
***
I.L.

(Max.)
****
Outline
WR650 1.12 - 1.70 650-251A-2 SMA-(f) 1.25 50 3 0.12 Dwg
WR430 1.70 - 2.60 430-251A-2 SMA-(f) 1.25 50 3 0.13 Dwg
WR340 2.20 - 3.30 340-251A-2 SMA-(f) 1.25 50 3 0.14 Dwg
WR284 2.60 - 3.95 284-251A-6 SMA-(f) 1.25 50 3 0.15 Dwg
WR229 3.30 - 4.90 229-251B-2 SMA-(f) 1.25 50 3 0.16 Dwg
WR187 3.95 - 5.85 187-251A-6 SMA-(f) 1.25 50 3 0.17 Dwg
WR159 4.90 - 7.05 159-251B-2 SMA-(f) 1.25 50 3 0.18 Dwg
WR137 5.85 - 8.20 137-251B-2 SMA-(f) 1.25 50 3 0.20 Dwg
WR112 7.05 - 10.0 112-251B-6 SMA-(f) 1.25 50 3 0.21 Dwg
WR102 7.00 - 11.0 102-251A-6 SMA-(f) 1.25 50 3 0.22 Dwg
WR90 8.20 - 12.4 90-251A-6 SMA-(f) 1.25 50 3 0.23 Dwg
WR75 10.0 - 15.0 75-251A-6 SMA-(f) 1.25 50 3 0.25 Dwg
WR62 12.4 - 18.0 62-251A-6 SMA-(f) 1.25 50 3 0.27 Dwg
WR51 15.0 - 22.0 51-251B-6 SMA-(f) 1.25 50 3 0.29 Dwg
WR51 15.0 - 22.0 51-252.4A-6 2.4mm-(f) 1.35
WR42 18.0 - 26.5 42-25KA-6 Type K-(f) 1.25 50 3 0.50 Dwg
WR42 18.0 - 26.5 42-251ZA-6 SMA-(f) 1.25 50 3 0.50 Dwg
WR34 22.0 - 33.0 34-25KB-6 Type-K (f) (2.9mm) 1.25 10 3 0.35 Dwg
WR34 22.0 - 33.0 34-252.4A-6 2.4mm-(f) 1.35
WR28 26.5 - 40.0 28-25KZA-6 Type-K (f) (2.9mm) 1.25 10 3 0.39 Dwg
WR28 26.5 - 40.0 28-252.4A-6 2.4mm-(f) 1.35
WR22 33.0 - 40.0 22-25KA-6 Type-K (f) (2.9mm) 1.35 10 3 0.41 Dwg
WR22 33.0 - 50.0 22-252.4A-6 2.4mm-(f) 1.35 10 3 0.41 Dwg
WR19 40.0 - 60.0 19-252.4A-6 2.4mm-(f) 1.35



Precision Low VSWR Full Band Right Angle Adapters
Waveguide to Coaxial (SMA, Type-K, & 2.4mm)
WG Size Freq. (GHz) *Model No. Coax
Connector
VSWR
(Max.)
Power
CW
(Watts)
Peak
Power
(kW)
***
I.L.
(Max.)
****
Outline

WR284 2.60 - 3.95 284-251PrA-6 SMA-(f) 1.15 50 3 0.15 Dwg
WR229 3.30 - 4.90 229-251PrB-2 SMA-(f) 1.15 50 3 0.16 Dwg
WR187 3.95 - 5.85 187-251PrA-6 SMA-(f) 1.15 50 3 0.17 Dwg
WR159 4.90 - 7.05 159-251PrB-2 SMA-(f) 1.15 50 3 0.18 Dwg
WR137 5.85 - 8.20 137-251PrB-2 SMA-(f) 1.15 50 3 0.20 Dwg
WR112 7.05 - 10.0 112-251PrB-6 SMA-(f) 1.15 50 3 0.21 Dwg
WR102 7.00 - 11.0 102-251PrA-6 SMA-(f) 1.15 50 3 0.22 Dwg
WR90 8.20 - 12.4 90-251PrA-6 SMA-(f) 1.15 50 3 0.23 Dwg
WR75 10.0 - 15.0 75-251PrA-6 SMA-(f) 1.15 50 3 0.25 Dwg
WR62 12.4 - 18.0 62-251PrA-6 SMA-(f) 1.15 50 3 0.27 Dwg
WR51 15.0 - 22.0 51-251PrB-6 SMA-(f) 1.15 50 3 0.29 Dwg
WR42 18.0 - 26.5 42-25KPrA-6 Type K-(f) 1.15 50 3 0.50 Dwg
WR34 22.0 - 33.0 34-25KPrB-6 Type-K (f) (2.9mm) 1.15 10 3 0.35 Dwg
WR28 26.5 - 40.0 28-25KPrA-6 Type-K (f) (2.9mm) 1.15 10 3 0.39 Dwg

Ordering Information
SMA Precision Waveguide To Coax
Right Angle Adapter

WR -Mod M -F
Example part number:  90 -251 A -6
Waveguide Size: (WR)
WR28 thru WR650 available

Basic Model No.: (-Mod)
Precision Model No.: (-ModPr)

Material (M): A=Aluminum, B=Copper/Brass
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

** All data given at 20° C and sea level.

***Theoretical Insertion Loss for WG to coax adapter is difficult to measure due to the very low loss and setup. The max I.L. figure quoted is based on the theoretical losses due to connector, waveguide and reflection all taken at the highest Freq. and max value.

**** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



Type-N Waveguide To Coaxial Right Angle Adapters
WG Size

Freq.
(GHz)

**
I.L.
(Max)

VSWR *Standard Models High Power Models ***
Outline
Power: CW Peak
(kW)
Power: CW Peak
(kW)
WR975 0.75-1.12 0.09  1.25 975-253A-2 200 3 975-253HPA-2 500 5 Dwg
WR650 1.12-1.70 0.10  1.25 650-253A-2 200 3 650-253HPA-2 500 5 Dwg
WR510 1.45-2.20 0.11  1.25 510-253A-2 200 3 510-253HPA-2 500 5 Dwg
WR430 1.70-2.60 0.12  1.25 430-253A-2 200 3 430-253HPA-2 500 5 Dwg
WR340 2.20-3.30 0.12  1.25 340-253A-2 200 3 340-253HPA-2 500 5 Dwg
WR284 2.60-3.95 0.13  1.25 284-253A-6 200 3 284-253HPA-6 500 5 Dwg
WR229 3.30-4.90 0.14  1.25 229-253B-2 200 3 229-253HPB-2 500 5 Dwg
WR187 3.95-5.85 0.15  1.25 187-253A-6 200 3 187-253HPA-6 500 5 Dwg
WR159 4.90-7.05 0.16  1.25 159-253B-2 200 3 159-253HPB-2 500 5 Dwg
WR137 5.85-8.20 0.17  1.25 137-253B-2 200 3 137-253HPB-2 350 5 Dwg
WR112 7.05-10.0 0.18  1.25 112-253B-6 200 3 112-253HPB-6 350 5 Dwg
WR102 7.00-11.0 0.19  1.25 102-253A-6 200 3 102-253HPA-6 300 5 Dwg
WR90 8.20-12.4 0.21 1.25 90-253A-6 150 2 90-253HPA-6 300 5 Dwg
WR75 10.0-15.0 0.23  1.25 75-253A-6 150 2 75-253HPA-6 250 5 Dwg
WR62 12.4-18.0 0.25  1.25 62-253A-6 150 2 62-253HPA-6 250 5 Dwg

Ordering Information
Type-N Waveguide To Coax
Right Angle Adapter

WR -Mod M -F
Example part number:  90 -253 A -6
Waveguide Size: (WR)
WR28 thru WR975 available

Basic Model No.: (-Mod) -253
High Power Model No.: (-ModHP) -253HP

Material (M): A=Aluminum, B=Copper/Brass
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


*The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

**Theoretical Insertion Loss for WG to coax adapter is difficult to measure due to the very low loss and setup. The max I.L. figure quoted is based on the theoretical losses due to connector, waveguide and reflection all taken at the highest Freq. and max value.

***Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



 TNC Waveguide To Coaxial Right Angle Adapters

WG Size Freq. (GHz) *Model No. VSWR Power
CW
(Watts)
Peak
Power
(kW)
**I.L.
(Max.)
***
Outline
WR650 1.12 - 1.70 650-255A-2  1.25 200 3 0.11 Dwg
WR430 1.70 - 2.60 430-255A-2  1.25 200 3 0.12 Dwg
WR340 2.20 - 3.30 340-255A-2  1.25 200 3 0.13 Dwg
WR284 2.60 - 3.95 284-255A-6  1.25 200 3 0.14 Dwg
WR229 3.30 - 4.90 229-255B-2  1.25 200 3 0.14 Dwg
WR187 3.95 - 5.85 187-255A-6  1.25 200 3 0.16 Dwg
WR159 4.90 - 7.05 159-255B-2  1.25 200 3 0.16 Dwg
WR137 5.85 - 8.20 137-255B-2  1.25 200 3 0.17 Dwg
WR112 7.05 - 10.0 112-255B-6  1.25 200 3 0.19 Dwg
WR102 7.00 - 11.0 102-255A-6  1.25 200 3 0.19 Dwg
WR90 8.20 - 12.4 90-255A-6  1.25 150 3 0.20 Dwg
WR75 10.0 - 15.0 75-255B-6  1.25 150 3 0.22 Dwg
WR62 12.4 - 18.0 62-255A-6  1.25 150 3 0.23 Dwg
WR51 15.0 - 18.0 51-255A-6  1.25 150 3 0.29 Dwg

Ordering Information
TNC Waveguide To Coax
Right Angle Adapter

WR -Mod M -F
Example part number:  112 -255 B -6
Waveguide Size: (WR)
WR62 thru WR650 available

Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Copper/Brass
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

**Theoretical Insertion Loss for WG to coax adapter is difficult to measure due to the very low loss and setup. The max I.L. figure quoted is based on the theoretical losses due to connector, waveguide and reflection all taken at the highest Freq. and max value.

*** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



Type SC Waveguide To Coaxial Right Angle Adapters
Waveguide To Coaxial Right Angle Adapter - SC Type
Waveguide To Coaxial Right Angle Adapter - SC Type
WG Size Freq (GHz) *Model No. VSWR Power
CW
(Watts)
Peak
Power
(kW)
** I.L.
(Max)
****
Outline
WR650 1.12-1.70 650-258A-2  1.25 1600 3 0.11 Dwg
WR430 1.70-2.60 430-258A-2  1.25 1300 3 0.12 Dwg
WR340 2.20-3.30 340-258A-2  1.25 1100 3 0.13 Dwg
WR284 2.60-3.95 284-258A-6  1.25 975 3 0.14 Dwg
WR229 3.30-4.90 229-258B-2  1.25 850 3 0.14 Dwg
WR187 3.95-5.85 187-258A-6  1.25 780 3 0.16 Dwg
WR159 4.90-7.05 159-258B-2  1.25 700 3 0.16 Dwg
WR137 5.85-8.20 137-258B-2  1.25 650 3 0.17 Dwg
WR112 7.05-10.0 112-258B-6  1.25 575 3 0.19 Dwg

Ordering Information
Type SC Waveguide To Coax
Right Angle Adapter

WR -Mod M -F
Example part number:  112 -258 B -6
Waveguide Size: (WR)
WR112 thru WR650 available

Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Copper/Brass
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

**Theoretical Insertion Loss for WG to coax adapter is difficult to measure due to the very low loss and setup. The max I.L. figure quoted is based on the theoretical losses due to connector, waveguide and reflection all taken at the highest Freq. and max value.

*** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



7/16" Waveguide To Coaxial Right Angle Adapters
Waveguide To Coaxial Right Angle Adapter - 7/16
Waveguide To Coaxial Right Angle Adapter - 7/16"
WG Size Freq. (GHz) *Model No.  VSWR Power
CW
(Watts)
Peak
Power
(kW)
**Outline
WR650 1.12 - 1.70 650-259A-2  1.25 200 3 .pdf
WR510 1.45 - 2.20 510-259A-2  1.25 200 3 .pdf
WR430 1.70 - 2.60 430-259A-2  1.25 200 3 .pdf
WR340 2.20 - 3.30 340-259A-2  1.25 200 3 .pdf
WR284 2.60 - 3.95 284-259A-6  1.25 200 3 .pdf
WR229 3.30 - 4.90 229-259B-2  1.25 200 3 .pdf
WR187 3.95 - 5.85 187-259A-6  1.25 200 3 .pdf
WR159 4.90 - 7.05 159-259B-2  1.25 200 3 .pdf
WR137 5.85 - 8.20 137-259B-2  1.25 200 3 .pdf

Ordering Information
7/16" Waveguide To Coax
Right Angle Adapter

WR -Mod M -F
Example part number:  137 -259 B -2
Waveguide Size: (WR)
WR137 thru WR650 available

Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Copper/Brass
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.

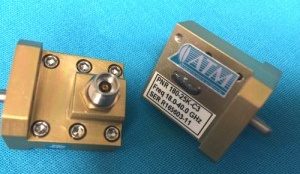

Double Ridge Waveguide To Coaxial Right Angle Adapters

Double Ridge Waveguide To Coaxial Right Angle Adapters


• Full Frequency Range
• VSWR 1.25 or better typical on most models, low values available over narrow frequency.
• Multiple Flange Types available.
• Standard Connectors are SMA and Type-N.  Others such as TNC also available, consult factory for details.
• Double Ridge W/G to Coax adapters are manufactured in aluminum only.

GENERAL SPECIFICATIONS
DOUBLE RIDGE W/G-COAX ADAPTERS

Electrical
VSWR: See model # table
  RF Connectors: SMA, Type-N,  standard. TNC available
Mechanical
Body: Aluminum
Flanges: Multiple types available - see Narda-MITEQ Std. Flanges
Connectors: Stainless Steel
Operation Temp:
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
General:
Product Specific:
Options
Pressure seal Units: Units sealed to hold 10 psi.  Add "/PT" to model number.
Example: P/N: 250-251-C3
Sealed Becomes: 250-251-C3/PT

FLANGE DESIGNATION & TYPE
DESIG. TYPE HOLES
- C1 COVER ALT. TAP/THRU
- C2 ALL TAPPED
- C3 ALL THRU
- G1 GROOVE ALT. TAP/THRU
- G2 ALL TAPPED
- G3 ALL THRU



SMA Double Ridge Waveguide To Coaxial Right Angle Adapters
WG Size Freq. (GHz) Model No.* VSWR
Max.
Power
CW
(Watts)
Peak
Power
(kW)
Outline
 ***
WRD250 2.6 - 7.8 250-251-C3 1.35 50 3 .pdf
WRD350 3.5 - 8.2 350-251-C3 1.35 50 3 .pdf
WRD475 4.75 - 11.0 475-251-C3 1.25 50 3 .pdf
WRD580 5.8 - 16.0 580-251-C3 1.25 50 3 .pdf
WRD650 6.5 - 18.0 650-251-C3 1.25 50 3 .pdf
WRD750 7.5 - 18.0 750-251-C3 1.25 50 3 .pdf
WRD180 18.0 - 40.0 180-25K-C3** 1.50 10 3 .pdf

SMA Double Ridge Waveguide To Coax Right Angle Adapter

WRD -Mod F
Example part number:  580 -251 -C3
Waveguide Size: (WRD)
WRD250 thru WRD180 available

Basic Model No.: (-Mod)
Flange (-F): See table above for quick reference
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

** These units are supplied with 2.9mm (K-type) connectors only.

*** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



Type-N & TNC Double Ridge Waveguide To Coax Right Angle Adapters
WG Size Freq (GHz) Type-N
Model No.*
TNC
Model No.*
VSWR
Max.
Power
CW
(Watts)
Peak
Power
(kW)
Outline
Drawings
**
WRD200 2.0 - 4.8 200-253-C3 200-255-C3 1.35 700 5
WRD250 2.6 - 7.8 250-253-C3 250-255-C3 1.35 200 5 Dwg
WRD350 3.5 - 8.2 350-253-C3 350-255-C3 1.25 200 5
WRD475 4.75 - 11.0 475-253-C3 475-255-C3 1.25 200 5 Dwg
WRD580 5.8 - 16.0 580-253-C3 580-255-C3 1.25 150 5 Dwg
WRD650 6.5 - 18.0 650-253-C3 650-255-C3 1.35 150 5 Dwg
WRD750 7.5 - 18.0 750-253-C3 750-255-C3 1.35 150 5 Dwg

Ordering Information
Type-N and TNC Double Ridge Waveguide To Coax
Right Angle Adapter

WRD -Mod -F
Example part number:  580 -253 -C3
Waveguide Size: (WRD)
WRD200 thru WRD750 available

Basic Model No.: (-Mod)
Flange (-F): See table above for quick reference
See ATNarda-MITEQ M Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



 High Power Type-N Double Ridge WG To Coaxial Right Angle Adapters
WG Size Freq (GHz) High Power
Model No.*
VSWR
Max.
Power
CW
(Watts)
Peak
Power
(kW)
Outline
Drawings
**
WRD250 2.6 - 7.8 250-253HP-C3 1.25 1000 5 Dwg
WRD475 4.75 - 11.0 475-253HP-C3 1.25 750 5 Dwg
WRD580 5.8 - 16.0 580-253HP-C3 1.35 500 5 Dwg
WRD650 6.5 - 18.0 650-253HP-C3 1.35 500 5 Dwg
WRD750 7.5 - 18.0 750-253HP-C3 1.25 500 5 Dwg

Ordering Information
High Power Type-N Double Ridge Waveguide To Coax
Right Angle Adapter

WRD -Mod -F
Example part number:  580 -253HP -C3
Waveguide Size: (WRD)
WRD250 thru WRD750 available

Basic Model No.: (-Mod)
Flange (-F): See table above for quick reference
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

** Outline drawings are of listed model numbers. Other flange types may affect size of the components. Contact factory for optional flanges and dimensions.



Primary Sidebar

Search for:
NardaMITEQ.com

Components Menu

›   Coaxial Components
›   Ka-Band Satcom Components
›   Space Qualified Components
›   Waveguide Components

Latest News and Videos

  • Narda-MITEQ Re-Certified By NQA for ISO-9001:2015

  • Home
  • Coaxial Components
  • Waveguide Components
  • Ka-Band Components
  • Space Qualified Components

Copyright © 2025 · Narda-MITEQ
