Waveguide Standard Tolerances

Rectangular Waveguide Standard Tolerances

Standard Tolerances for Rigid Waveguide Assemblies

These are the standard tolerance specifications for custom rectangular rigid waveguide components. These dimensional tolerance standards apply to custom built assemblies.

Download this page from the Rectangular Waveguide Standard Tolerances PDF, which contains the same information presented here.

See Also:
Waveguide Components Menu
Waveguide Info - Double Ridge
Waveguide Info - Double Ridge
Waveguide Gasket Info

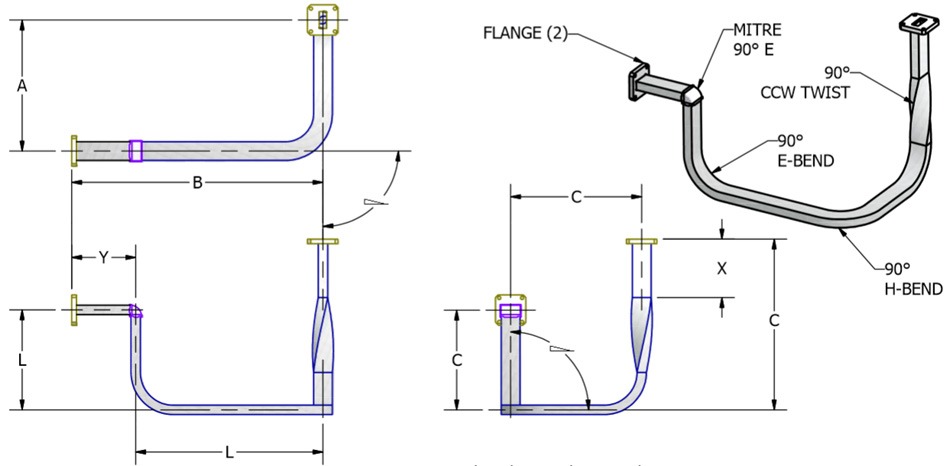

Waveguide Size Closure Dimensions
(A, B, C)
Bend Location
(L)
Bend Angle Segment Locations
(X, Y)
  0" to 12" 12" to 24" 24" to 48" 48"+   Bend Angle
WR-19 to WR-42 .010 .015 .020 .030 0.010 1° 0.010
WR-51 to WR-75 .015 .020 .025 .035 0.015 1° 0.015
WR-90 to WR-112 .020 .025 .030 .040 0.030 1° 0.020
WR-137 to WR-187 .030 .035 .040 .050 0.050 2° 0.025
WR-229 to WR-430 .040 .045 .050 .060 0.075 2° 0.030



Waveguide Standard Tolerances
