Quick Disconnect

Waveguide Quick Connect / Disconnect / Dust Covers

Waveguide Quick Disconnects & Dust Covers

Narda-MITEQ manufactures waveguide quick connects / disconnects and protective dust covers for fast connections. Easy installation without the use of screws and nuts. For more information feel free to call us and discuss your needs with one of our design engineers.

Waveguide Hardware:
Waveguide Shims and Spacers
Waveguide Hardware Clamps & Gaskets

Waveguide Quick Disconnects

  • Fast Waveguide Connection.
  • Easy Installation
  • Connects waveguide by several turns of a threaded ring.
  • Connects and disconnects waveguides without use of screws and nuts.
  • Dust Covers Not Included
  • Provided with Mil-spec rated Dry-lube for better performance in demanding environments, specification here.
  • View a video showing how our Waveguide Quick Disconnect is assembled:
Quick Disconnect.mpg (1.3Mb) Quick Disconnect Movie

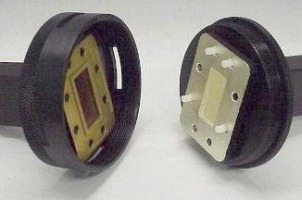

Rectangular Waveguide Quick Disconnect Open
Rectangular Waveguide Quick Disconnect Open
Rectangular Waveguide Quick Disconnect Closed
Rectangular Waveguide Quick Disconnect Closed

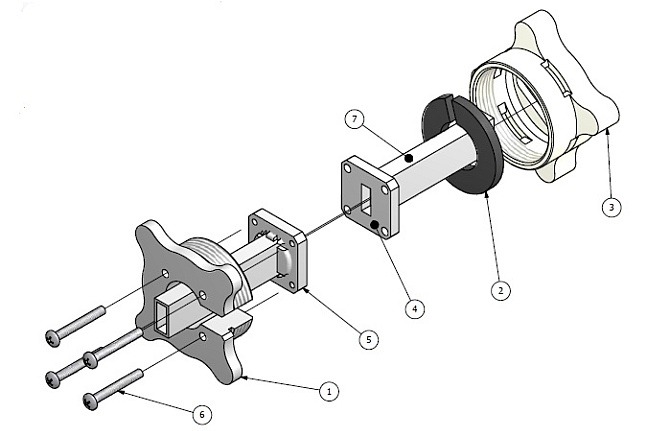

Rectangular Waveguide Quick Disconnect Diagram
Illustration above depicts 'High Torque' Quick Connect



Quick Disconnects - Rectangular Waveguide
WG Size Model No. Mates Flanges:* Outline
Drawings
WR284 QD-284 CPR Dwg
WR229 QD-229 CPR Dwg
WR159 QD-159 CPR Dwg
WR187 QD-187 Cover/Groove/Choke Dwg
WR137 QD-137 CPR Dwg
WR112 QD-112 Cover/Groove/Choke Dwg
WR90 QD-90 Cover/Groove/Choke Dwg
WR75 QD-75 Cover/Groove/Choke/CPR Dwg
WR62 QD-62 Cover/Groove/Choke Dwg
WR51 QD-51 Cover/Groove/Choke Dwg
WR42 QD-42HQ Cover/Groove/Choke Dwg
WR34 QD-34HQ Cover/Groove/Choke Dwg
WR28 QD-28HQ Cover/Groove/Choke Dwg

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Quick Disconnects - Rectangular Waveguide, Hi-Torque Models
WG Size Model No. Mates Flanges:* Outline
Drawings
WR90 QD-90HQ Cover/Groove/Choke
WR75 QD-75HQ Cover/Groove/Choke
WR62 QD-62HQ Cover/Groove/Choke
WR51 QD-51HQ Cover/Groove/Choke
WR42 QD-42HQ Cover/Groove/Choke Dwg
WR34 QD-34HQ Cover/Groove/Choke Dwg
WR28 QD-28HQ Cover/Groove/Choke Dwg

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Quick Disconnects - Double-Ridge Waveguide
WG Size Model No. Mates Flanges:* Outline
Drawings
WRD350 QD-350 Cover/Groove
WRD580 QD-580 Cover/Groove Dwg
WRD650 QD-650 Cover/Groove
WRD750 QD-750 Cover/Groove

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Waveguide Quick Disconnects With Dust Covers

 • Fast Waveguide Connection.
  • Easy Installation
  • Connects waveguide by several turns of a threaded ring.
  • Connects and disconnects waveguides without use of screws and nuts.
  • Dust Covers Not Included
  • Provided with Mil-spec rated Dry-lube for better performance in demanding environments, specification here.
  Quick Disconnect Movie• View a video showing how our Waveguide Quick Disconnect is assembled:
Quick Disconnect.mpg (1.3Mb)

Rectangular Waveguide Quick Disconnect Open
Rectangular Waveguide Quick Disconnect Open

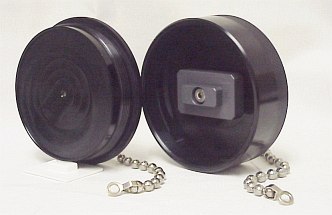

Waveguide Quick Disconnect Dust Covers
Waveguide Quick Disconnect Dust Covers

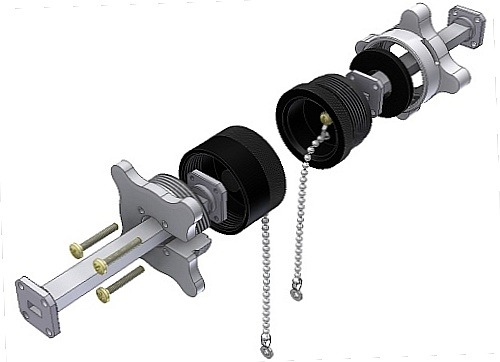

Hi-Torque WR28 Waveguide Quick Disconnect With Dust Covers
Hi-Torque WR28 Waveguide Quick Disconnect With Dust Covers



Quick Disconnects With Dust Covers - Rectangular Waveguide
WG Size Model No. Mates Flanges:* Outline
Drawings
WR284 QD-284-M/FDC CPR
WR229 QD-229-M/FDC CPR
WR187 QD-187-M/FDC Cover/Groove/Choke Dwg
WR137 QD-137-M/FDC CPR
WR112 QD-112-M/FDC Cover/Groove/Choke Dwg
WR90 QD-90-M/FDC Cover/Groove/Choke
WR75 QD-75-M/FDC Cover/Groove/Choke/CPR

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Quick Disconnects With Dust Covers - Rectangular Waveguide,
Hi-Torque
WG Size Model No. Mates Flanges:* Outline
Drawings
WR90 QD-90HQ-M/FDC Cover/Groove/Choke
WR75 QD-75HQ-M/FDC Cover/Groove/Choke
WR62 QD-62HQ-M/FDC Cover/Groove/Choke
WR51 QD-51HQ-M/FDC Cover/Groove/Choke
WR42 QD-42HQ-M/FDC Cover/Groove/Choke
WR34 QD-34HQ-M/FDC Cover/Groove/Choke
WR28 QD-28HQ-M/FDC Cover/Groove/Choke

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Quick Disconnects With Dust Covers - Double-Ridge Waveguide
WG Size Model No. Mates Flanges:* Outline
Drawings
WRD580 QD-580-M/FDC Cover/Groove
WRD650 QD-650-M/FDC Cover/Groove
WRD750 QD-750-M/FDC Cover/Groove

* At least 1 flange MUST be tapped for the nylon positioning screws that fasten the Male side of the Quick Disconnect.  See Fig. 2 above.
See Narda-MITEQ Flange page for more information on flanges.



Quick Disconnect Dust Covers Only
Waveguide Quick Disconnect Dust Covers
Waveguide Quick Disconnect Dust Covers

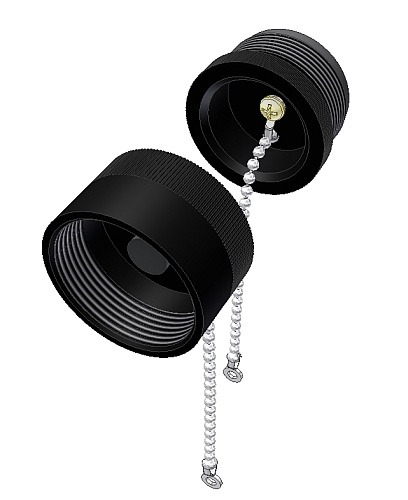

Waveguide Quick Disconnect Small Dust Cover

 • Easy Installation.
 • Dust Covers help keep waveguide assemblies free from unwanted contamination.
 • Available as an added option to the the Quick disconnect assembly listed above.
 • Male dust cover mates to female side of quick connect assembly.
 • Female dust cover mates to male side of quick connect assembly.



Dust Covers Only - Rectangular Waveguide
WG Size Dust Cover Set
Male & Female
Model No.
Female Only
Dust Cover
Model No.
Male Only
Dust Cover
Model No.
Outline
Drawings
WR284 QD-284-DC QD-284-FDC QD-284-MDC
WR229 QD-229-DC QD-229-FDC QD-229-MDC
WR187 QD-187-DC QD-187-FDC QD-187-MDC Dwg
WR137 QD-137-DC QD-137-FDC QD-137-MDC
WR112 QD-112-DC QD-112-FDC QD-112-MDC pdf
WR90 QD-90-DC QD-90-FDC QD-90-MDC
WR75 QD-75-DC QD-75-FDC QD-75-MDC
WR62 QD-62-DC QD-62-FDC QD-62-MDC
WR51 QD-51-DC QD-51-FDC QD-51-MDC
WR42 QD-42-DC QD-42-FDC QD-42-MDC  pdf
WR34 QD-34-DC QD-34-FDC QD-34-MDC  pdf
WR28 QD-28-DC QD-28-FDC QD-28-MDC  pdf



Dust Covers Only - Double-Ridge Waveguide
WG Size Dust Cover Set
Male & Female
Model No.
Female Only
Dust Cover
Model No.
Male Only
Dust Cover
Model No.
Outline
Drawings
WRD580 QD-580-DC QD-580-FDC QD-580-MDC
WRD650 QD-650-DC QD-650-FDC QD-650-MDC
WRD750 QD-750-DC QD-750-FDC QD-750-MDC
