Flexible Coaxial RF Cable

Flexible RF Coaxial Cable

Flexible RF Coax Cable and Connectors

Advanced Technical Materials (ATM) manufactures high performance microwave coax RF cable that utilizes only the very best materials, incorporating proprietary manufacturing methods, which yield very low Insertion Loss characteristics, high power capability and is Amplitude and Phase Stable on a level not readily available in the microwave industry.

ATM RF Cables have five different sizes of coaxial cable designed to operate from DC-60 GHz. We can also manufacture custom RF cable assemblies as required. Please call us and discuss your custom RF cable requirements with one of our design engineers.

Superior Coax RF Cables

ATM utilizes a solid, silver plated copper center conductor and Expanded PTFE dielectric material which allows for very low Insertion Loss and high power handling capability.

The outer conductor is a flat, silver plated copper foil wrapped helically around the dielectric and mechanically locked to the dielectric core to promote superior phase and amplitude stability, as well as, very low VSWR performance.

A silver plated copper, braided shield is then added to increase the axial tensile quality of the cable and further enhance RF leakage characteristics. The RF cable outer jacket is a tough, high temperature thermoplastic that can withstand temperatures from -65° to +200° Celsius.

All this adds up to a very superior microwave cable product that can meet the most demanding requirements. ATM cables meet military specifications for MIL-C-17 and MIL-DTL-87104. ATM connectors meet MIL-C-39012. This product can be sold in bulk raw coaxial cable form, or as fully guaranteed RF coaxial cable assemblies.

High Quality RF Cable Assemblies

ATM tests all coaxial cable and coax cable assemblies 100% for Impedance, Insertion Loss and VSWR. Additional coax RF cable electrical requirements can be fully tested and examined in our well equipped Quality Control Test Lab.

Custom RF Cable Assemblies

ATM can create custom coaxial cable assemblies to your challenging specifications. Our design engineers stand ready to assist you with your next RF cabling project by working with you to produce coaxial cable assemblies that will exceed your expectations.

ATM works for our customers to provide great service, excellent pricing and fast deliveries, with the highest possible quality available in the microwave RF cable industry.

Give ATM your toughest interconnection requirements and let us show you how our custom RF cables can help you save money and solve your interconnect problems.

See Also:
Cable Assy Loss Calculations

Ka-Band:
Ka-Band Flexible Coax Cable

Coiled Flexible RF Coax Cables
Coiled Flexible RF Coax Cables
Assorted Coaxial Flexible Cables
Assorted Coaxial Flexible Cables

Coaxial Cable Connectors

A) Silver Plated Copper Center Conductor
B) Expanded PTFE Dielectric Core
C) Silver Plated Copper Outer Conductor
D) Silver Plated Copper Outer Shield
E) FEP Outer Jacket, Black

Ordering Information


Raw RF Coax Cable Lengths

Design a Model # to fit your requirements using the
Cable Type reference table below for cable type. All Model numbers begin with CFR - Cable, unless otherwise specified, will be supplied in multiple lengths to make up quantity ordered. Click here for typical lengths of a given cable type. Minimum ordering length is 25 Ft.

Total quantity shipped will be +/-10% of total ordered.

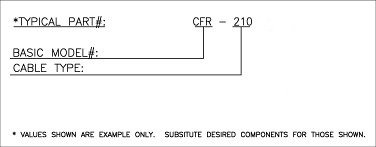

Raw Coax Cable Length Part Information

Raw Coax Cable Length Part Information

Coaxial RF Cable Assemblies
Design a Model # to fit your requirements using the
Cable Type reference table below for cable type, and the Connector Type reference table below for Connectors.
All model numbers begin with CF.

Also see the Cable Length Tolerances PDF

Note: Option for Armored cable exists. Add suffix "A" to basic cable type. Ex.: CF-210A-72-SM-NM

Coaxial Cable Assembly Part Number Information

Coaxial Cable Assembly Part Number Information



Coax RF Cable Connector Specifications


Coaxial RF Cable Connectors
Coaxial Cable Connectors
Coaxial Cable Connectors
Design a Model # to fit your requirements using the reference table below for connector types for your RF cable assembly.

                     *Example P/N:                           SM -210
Connector Model Part Table
*VALUES SHOWN ARE EXAMPLE. SUBSTITUTE DESIRED COMPONENTS FOR THOSE SHOWN HERE.

 Connector Types
Available = Indicates Availability
Connector Type Freq.
(GHz)
  Connector Code Atm Flexible Cable Type
100 135 160 210 300 500
1.85mm (V) DC-60.0 MALE VM Available
2.4mm DC-50.0 MALE 2.4M Available Available
2.9mm (K) DC-40.0 FEMALE KF Available Available Available Available
MALE KM
SMA DC-18.0 FEMALE SF Available Available Available Available Available
MALE SM
SMA (HIGH FREQ.) DC-26.5 FEMALE SFH Available Available Available Available
MALE SMH
SMA BULKHEAD DC-18.0 FEMALE SFB Available Available Available Available Available
MALE SMB
SMA 90° (RT. ANGLE) DC-18.0 FEMALE SFR Available Available Available Available Available
MALE SMR
TYPE-N DC-18.0 FEMALE NF       Available Available
MALE NM
DC-11.0 FEMALE NF           Available
MALE NM
TYPE-N BULKHEAD DC-18.0 FEMALE NFB       Available Available
MALE NMB
TYPE-N 90° (RT. ANGLE) DC-18.0 FEMALE NFR       Available Available
MALE NMR
TNC DC-18.0 FEMALE TF       Available Available
MALE TM
TNC BULKHEAD DC-18.0 FEMALE TFB       Available Available
MALE TMB
TNC 90° (RT. ANGLE) DC-18.0 FEMALE TFR       Available Available
MALE TMR
SC DC-11.0 FEMALE SCF         Available Available
MALE SCM
SC 90° (RT. ANGLE) DC-11.0 FEMALE SCFR         Available Available
MALE SCMR
7/16" DC-5.0 FEMALE 7/16F         Available Available
MALE 7/16M
Connector Type Connector Code 100 135 160 210 300 500
Cable Type



Connector / RF Cable Assembly Procedures


Cable Type: 100 135 160 210 300 500
    2.4M-135 SM-160 SM-210 NM-300
  SM-135 NMR-160 NM-210 NM-300-1
  KM-135 NMC-160   SCM-300
  SMR-135     TM-300
        SM-300
        NMR-300
        TMR-300
        SMR-300





RF Cable Specifications For Coax Cables


Flexible Coaxial Cable Types
Cable Type: 100 135 160 210 300 500
Frequency Operation
(GHz)
DC - 62 DC - 43 DC - 35 DC - 30 DC - 18 DC - 11
Size O.D. (inches)  0.110 0.145  0.170  0.220  0.310  0.500
Impedance (ohms)  50  50 50  50  50  50
Dielectric Type  SPTFE EPTFE SPTFE EPTFE EPTFE PE
Capacitance (pF/ft) 29  24 29  24  24  23
Time Delay (ns/ft)  1.4  1.2 1.4  1.2  1.2 1.15
Velocity (%)  70  84 70  84  84  85
RF Leakage >100dB to
18 GHz
>100dB to
18 GHz
80dB to
40 GHz
>100dB to
18 GHz
>100dB to
18 GHz
>100dB to
18 GHz
>100dB to
11 GHz
Cut Off Frequency  (GHz)  62  43 35 30  18  11
Weight (lbs/100ft)  1.9  3 6.5  7  12.5 15
Min Bend Radius (in)  0.25  0.5 0.75  1.0 2.0 3.0
Temp Range
(min/max °C)
 -65°/+200° -65°/+200° -65° to +200° C  -65°/+200°  -65°/+200° -65°/+90° *

Please consult factory on specifications regarding phase stability of our RF cables.
* CF-500 cable is supplied with a black jacket.

Typical Assembly** VSWR:

(All applicable cable types)

**Spec. includes Connectors

DC - 12 GHz: 1.30: 1
DC - 18 GHz 1.35: 1
DC - 26.5 GHz 1.40 : 1
DC - 40 GHz 1.45 : 1
DC - 50 GHz 1.50 : 1
DC - 60 GHz 1.60 : 1
Total Cable Assembly Loss for 12" Assembly @ 10 GHz (dB) 0.75 0.48 0.61 0.46 0.39 0.35

Total Cable Assembly Loss: (dB)
Click link to calculate

CF100 CF135 CF160 CF210 CF300 CF500



Average Power
Cable Type: 100 135 160 210 300 500
@ Frequency: Avg. Power (W)
1.0 GHz 375 540 625 800 1900 2500
2.0 GHz 250 400 435 600 1400 1600
3.0 GHz 150 300 330 475 1100 1200
6.0 GHz 100 210 225 320 650 700
12.0 GHz 70 160 175 210 520 600 to 11GHz
18.0 GHz 50 100 100 160 400
