Flexible Coaxial Cable

Flexible Coaxial Cable For Ka-Band

Coax Cable & Connector Specifications

Advanced Technical Materials manufactures high performance coaxial microwave cable for the Satcom Ka-Band. Our cable covers the 18.3 - 31.0 GHz band which yields very low Insertion Loss characteristics, high power capability and is Amplitude and Phase Stable.

This specific coaxial cable line has two different sizes of cable,  CF-210 for the downlink 18.3 - 20.2GHz and CF-135 for the uplink 27.5 - 31.0GHz and full Ka-Band 18.3 - 31.0GHz.  Cable assemblies are available with SMA and 2.9smm connectors.  Please call us and discuss your needs with one of our design engineers.

Coaxial Cable Connectors

A) Silver Plated Copper Center Conductor
B) Expanded PTFE Dielectric Core
C) Silver Plated Copper Outer Conductor
D) Silver Plated Copper Outer Shield
E) FEP Outer Jacket, Black

See Also:
Ka-Band Coaxial Menu

Coaxial:
Flexible Coaxial Cable

Coiled Flexible Coax Cables

 Assorted Coaxial Flexible Cables

Cable Assemblies
Design a Model # to fit your requirements using the Cable Type reference table below for cable type,
and the Connector Type reference table below for Connectors.  All model numbers begin with CF.

Note: Option for Armored cable exists. Add suffix "A" to basic cable type. Ex.: CF-210A-72-SM-SM

Ka-Band Flexible Coaxial Cable Part No Specs



Connector Specifications

Coaxial Cable Connectors

Design a Model # to fit your requirements using the reference table below for connector type.

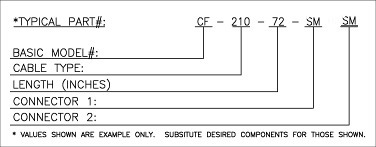

                           *Example P/N:                                        SM -210
Connector Model Part Table

*VALUES SHOWN ARE EXAMPLE. SUBSTITUTE DESIRED COMPONENTS FOR THOSE SHOWN HERE.

Connector Types Available = Indicates Availability
Connector
Type
Freq.
(GHz)
  Connector
Code
ATM Flexible Cable Type
100 135 160 210 300 500
2.9mm (K) 18.3 - 31.0 FEMALE KF   Available   Available
MALE KM
SMA (HIGH
FREQ.)
18.3 - 20.2 FEMALE SFH   Available   Available
MALE SMH

Flexible Cable Types Specifications
Cable Type: 135 210
 Frequency Operation (GHz) 18.3 - 31.0 18.3 - 20.2
 Size O.D. (inches) 0.145   0.220
 Impedance (ohms)  50  50
 Dielectric Type EPTFE EPTFE
 Capacitance (pF/ft)  24  24
 Time Delay (ns/ft)  1.2  1.2
 Velocity (%)  84  84
 RF Leakage 80dB to 31GHz >80dB to 20.2 GHz
 Cut Off Frequency  (GHz)   43 30
 Weight (lbs/100ft)  3  7
 Min Bend Radius (in)  0.5  1.0
 Temp Range  (min/max °C) -65°/+200°  -65°/+200°
 Typical Assembly** VSWR:
(All applicable cable types)
**Spec. includes Connectors
18.3 - 31.0 GHz
1:40 : 1
18.3 - 20.2 GHz
1:15 : 1
Total Cable Assembly Loss
for 20" Assembly (dB)
1.7 1.1
