Crossguide Directional

Crossguide Directional Waveguide Couplers

Crossguide Directional Waveguide Couplers

Narda-MITEQ manufactures crossguide directional couplers covering a wide frequency range in either brass or aluminum.

Narda-MITEQ's single arm cross guide couplers are available with multiple flange and coaxial connector types and configurations to cover all requirements you may have for microwave couplers. Dual arm cross guide directional couplers are also available.

Models are available with 2, 3 or 4 waveguide ports and SMA, Type-K and Type-N connectors. These crossguide directional couplers cover full waveguide frequency and have standard coupling of 30db, 40db or 50db, however other values are available upon request.

Pressure sealed cross guide directional couplers are also available for microwave applications that require sealed systems. For more information feel free to call us and discuss your needs with one of our design engineers.

TYPICAL SPECIFICATIONS
CROSSGUIDE & DIRECTIONAL COUPLERS

• Full waveguide frequency range
• Single Arm standard, Multiarm model available
• Available in Aluminum or Copper/Brass
• Narda-MITEQ's 300 series typically handles the full guide rating.  All other series typically handle the guide rating in the forward direction.
• Coupling: 30, 40, or 50dB (other values available consult factory for details)
• Internal termination rated at 2 watts.  In the reverse direction or when used as an injector the internal termination shouldn't see more than 2 watts CW

Electrical
Nominal Coupling: +/- 0.5dB
Frequency Sensitivity: +/- 1.00dB max.
Directivity: 16dB min, 20dB typical.
VSWR  Waveguide: 1.05 max.  Coax: 1.25 max.
Mechanical
Construction: Aluminum or Brass/Copper per order
Connectors: Stainless Steel
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
General:
Product Specific:
Options
Pressure Sealed Units: Add "/PT" to model number.
Example P/N: 229-300B-dB-2-2-2-2
Sealed P/N: 229-300B-dB-2-2-2-2/PT
Note: Pressure sealed units will hold 15 psi assuming all waveguide and coax ports are mated and sealed.

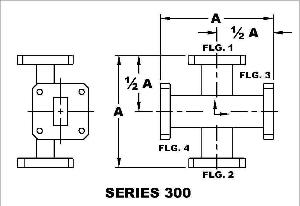

CrossGuide Directional Coupler - 4 Waveguide Ports - Series 300

4 Port Waveguide Crossguide Directional Coupler

 Series 300 Crossguide Directional Coupler - 4 Waveguide Ports
Standard Models
WG Size Freq (GHz) Standard
Model No.*		 Dim A
(In)
WR430 1.70 - 2.60 430-300A-dB-2-2-2-2 7.50
WR340 2.20 - 3.30 340-300A-dB-2-2-2-2 7.50
WR284 2.60 - 3.95 284-300A-dB-6-6-6-6 7.50
WR229 3.30 - 4.90 229-300B-dB-2-2-2-2 7.00
WR187 3.95 - 5.85 187-300A-dB-6-6-6-6 6.50
WR159 4.90 - 7.05 159-300B-dB-2-2-2-2 6.00
WR137 5.85 - 8.20 137-300B-dB-2-2-2-2 6.00
WR112 7.05 - 10.0 112-300B-dB-6-6-6-6 4.20
WR90 8.20 - 12.4 90-300A-dB-6-6-6-6 4.00
WR75 10.0 - 15.0 75-300B-dB-6-6-6-6 3.75
WR62 12.4 - 18.0 62-300B-dB-6-6-6-6 3.50
WR51 15.0 - 22.0 51-300B-dB-6-6-6-6 3.10
WR42 18.0 - 26.5 42-300B-dB-6-6-6-6 2.20
WR34 22.0 - 33.0 34-300B-dB-6-6-6-6 2.20
WR28 26.5 - 40.0 28-300A-dB-6-6-6-6 2.00
WR22 33.0 - 50.0 22-300A-dB-6-6-6-6 2.00
Ordering Information
Crossguide Couplers
4 Waveguide Ports
 WR -Mod M -dB -F1 -F2 -F3 -F4
Example part number:  187 -300 A -40 -6 -6 -6 -6
Waveguide Size: (WR)
WR28 thru WR430 available
Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Brass
Coupling (dB): 30, 40, or 50dB **
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 3 (-F3): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 4 (-F4): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** In addition to W/G size, material, and flange layout, the customer must choose the coupling value appropriate for application: (30dB, 40dB, or 50dB) and insert it in the model number where "dB" is listed.

Option: Add /PT to part number for pressure sealed unit to 15 psi.

Example P/N:
187-300A-40-6-6-6-6 is: WR187-4 Waveguide Port Aluminum-40dB-Cover Flg-Cover Flg-Cover Flg-Cover Flg

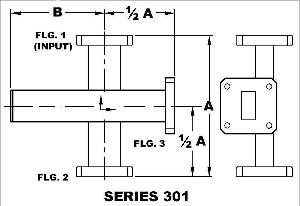

CrossGuide Directional Coupler - 3 Waveguide Ports - Series 301
Series 301 3 Port Waveguide Crossguide Directional Coupler 301 Series 3 Port Waveguide Crossguide Directional Coupler - Diagram
Standard Models
WG Size Freq (GHz) Standard
Model No.*		 Dim A
(In)		 Dim B
(In)		 Outline
WR430 1.70 - 2.60 430-301A-dB-2-2-2 7.50 8.00
WR340 2.20 - 3.30 340-301A-dB-2-2-2 7.50 8.00
WR284 2.60 - 3.95 284-301A-dB-6-6-6 7.50 5.00
WR229 3.30 - 4.90 229-301B-dB-2-2-2 7.00 4.75
WR187 3.95 - 5.85 187-301A-dB-6-6-6 6.50 4.50
WR159 4.90 - 7.05 159-301B-dB-2-2-2 6.00 4.00
WR137 5.85 - 8.20 137-301B-dB-2-2-2 6.00 4.00
WR112 7.05 - 10.0 112-301B-dB-6-6-6 4.20 3.00
WR90 8.20 - 12.4 90-301A-dB-6-6-6 4.00 2.75
WR75 10.0 - 15.0 75-301B-dB-6-6-6 3.75 2.50
WR62 12.4 - 18.0 62-301B-dB-6-6-6 3.50 2.37
WR51 15.0 - 22.0 51-301B-dB-6-6-6 3.10 2.25
WR42 18.0 - 26.5 42-301B-dB-6-6-6 2.20 1.50
WR34 22.0 - 33.0 34-301B-dB-6-6-6 2.20 1.50
WR28 26.5 - 40.0 28-301A-dB-6-6-6 2.00 2.15  .pdf
WR22 33.0 - 50.0 22-301A-dB-6-6-6 2.00 2.025
Ordering Information
Crossguide Couplers
3 Waveguide Ports
 WR -Mod M -dB -F1 -F2 -F3
Example part number:  187 -301 A -40 -6 -6 -6
Waveguide Size: (WR)
WR28 thru WR430 available
Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Brass
Coupling (dB): 30, 40, or 50dB **
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 3 (-F3): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** In addition to W/G size, material, and flange layout, the customer must choose the coupling value appropriate for application: (30dB, 40dB, or 50dB) and insert it in the model number where "dB" is listed.

Option: Add /PT to part number for pressure sealed unit to 15 psi.

Example P/N:
187-301A-40-6-6-6 is: WR187-3 Waveguide Port Aluminum-40dB-Cover Flg-Cover Flg-Cover Flg

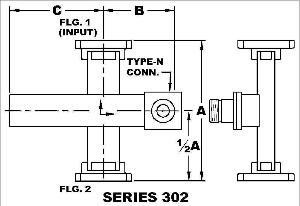

CrossGuide Directional Coupler - 2 W/G Ports, 1 Type-N Port - Series 302
Series 302 Waveguide Crossguide Directional Coupler - 2 WG Ports, 1 Type-N Port Series 302 Waveguide Crossguide Directional Coupler - 2 WG Ports, 1 Type-N Port - Diagram
Standard Models
WG Size Freq (GHz) Standard
Model No.*		 Dim A
(In)		 Dim B
(In)		 Dim C
(In)
WR430 1.70 - 2.60 430-302A-dB-2-2 7.50 5.00 8.00
WR340 2.20 - 3.30 340-302A-dB-2-2 7.50 4.00 8.00
WR284 2.60 - 3.95 284-302A-dB-6-6 7.50 3.75 5.00
WR229 3.30 - 4.90 229-302B-dB-2-2 7.00 3.50 4.75
WR187 3.95 - 5.85 187-302A-dB-6-6 6.50 3.25 4.50
WR159 4.90 - 7.05 159-302B-dB-2-2 6.00 3.00 4.00
WR137 5.85 - 8.20 137-302B-dB-2-2 6.00 3.00 4.00
WR112 7.05 - 10.0 112-302B-dB-6-6 4.20 2.10 3.00
WR90 8.20 - 12.4 90-302A-dB-6-6 4.00 2.00 2.75
WR75 10.0 - 15.0 75-302B-dB-6-6 3.75 1.87 2.50
WR62 12.4 - 18.0 62-302B-dB-6-6 3.50 1.75 2.37
Ordering Information
Crossguide Couplers
2 WG Ports, 1 Type-N
 WR -Mod M -dB -F1 -F2
Example part number:  187 -302 A -40 -6 -6
Waveguide Size: (WR)
WR62 thru WR430 available
Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Brass
Coupling (dB): 30, 40, or 50dB **
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** In addition to W/G size, material, and flange layout, the customer must choose the coupling value appropriate for application: (30dB, 40dB, or 50dB) and insert it in the model number where "dB" is listed.

Option: Add /PT to part number for pressure sealed unit to 15 psi.

Example P/N:
187-302A-40-6-6 is: WR187-2 WG Port/1 Type-N, Aluminum-40dB-Cover Flg-Cover Flg

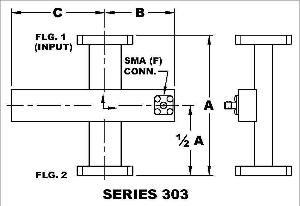

CrossGuide Directional Coupler - 2 W/G Ports, 1 SMA Type-K - Series 303
Waveguide Crossguide Directional Coupler - 2 Waveguide Ports, 1 SMA Type-K Port Series 303 Crossguide Directional Coupler - 2 Waveguide Ports, 1 SMA Type-K Port
Standard Models
WG Size Freq (GHz) Standard
Model No.*		 Dim A
(In)		 Dim B
(In)		 Dim C
(In)		 Outline
Dwgs
WR430 1.70 - 2.60 430-303A-dB-2-2 7.50 5.00 8.00 Dwg
WR340 2.20 - 3.30 340-303A-dB-2-2 7.50 4.00 8.00 Dwg
WR284 2.60 - 3.95 284-303A-dB-6-6 7.50 3.75 5.00 Dwg
WR229 3.30 - 4.90 229-303B-dB-2-2 7.00 3.50 4.75 Dwg
WR187 3.95 - 5.85 187-303A-dB-6-6 6.50 3.25 4.50 Dwg
WR159 4.90 - 7.05 159-303B-dB-2-2 6.00 3.00 4.00 Dwg
WR137 5.85 - 8.20 137-303B-dB-2-2 6.00 3.00 4.00 Dwg
WR112 7.05 - 10.0 112-303B-dB-6-6 4.20 2.10 3.00 Dwg
WR90 8.20 - 12.4 90-303A-dB-6-6 4.00 2.00 2.75 Dwg
WR75 10.0 - 15.0 75-303B-dB-6-6 3.75 1.87 2.50 Dwg
WR62 12.4 - 18.0 62-303B-dB-6-6 3.50 1.75 2.37 Dwg
WR51 15.0 - 22.0 51-303B-dB-6-6 3.10 1.50 2.25 Dwg
WR42 18.0 - 26.5 42-303B-dB-6-6 2.20 1.10 1.50 Dwg
WR34 22.0 - 33.0 34-303B-dB-6-6*** 2.20 1.10 1.50 Dwg
WR28 26.5 - 40.0 28-303A-dB-6-6*** 2.00 1.00 2.15 Dwg
WR22 33.0 - 50.0 22-303A-dB-6-6**** 2.00 1.00 2.025

*** These units are supplied with K-connectors only.
**** These units are supplied with 2.4mm connectors only.
Ordering Information
Crossguide Couplers
2 WG Ports, 1 SMA Type-K
 WR -Mod M -dB -F1 -F2
Example part number:  187 -303 A -40 -6 -6
Waveguide Size: (WR)
WR28 thru WR430 available
Basic Model No.: (-Mod)
Material (M): A=Aluminum, B=Brass
Coupling (dB): 30, 40, or 50dB **
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

** In addition to W/G size, material, and flange layout, the customer must choose the coupling value appropriate for application: (30dB, 40dB, or 50dB) and insert it in the model number where "dB" is listed.

Option: Add /PT to part number for pressure sealed unit to 15 psi.

Example P/N:
187-303A-40-6-6 is: WR187-2 WG Port, 1 SMA Type-K Aluminum-40dB-Cover Flg-Cover Flg
