Phase Shifter Very Low Loss

Coaxial Phase Shifters - Very Low Loss

Very Low Loss Phase Shifter

ATM's Very Low-Loss Phase Shifters can be custom made to fit your requirements.  Most standard units offer a minimum phase shift of 360° at the lowest operating frequency.  Taking advantage of the low loss cavity structure, these phase shifters exhibit very low-loss as compared to the standard coaxial phase shifter.

They are perfectly suited for applications requiring low loss and loss variations.  Note that since this type of phase shifter uses high unloaded Q low loss cavities, they are limited in bandwidth.  Consult factory for your specific requirement.

Coaxial Phase Shifters:
SMA / Type-N Line Stretchers
Coaxial Phase Shifters
Motor Driven Phase Shifters

Stepper Motor Driven Phase Shifter

Waveguide:
Phase Shifters / Line Stretchers
High Power Phase Shifters

Ka-Band:
Coax Line Stretchers
Coaxial Phase Shifters
Waveguide Phase Shifters

Very Low Loss Millimeter Wave Coaxial Phase Shifters
Very Low Loss Millimeter Wave Coaxial Phase Shifters
GENERAL SPECIFICATIONS -
Very Low Loss Phase Shifter

Mechanical
Body: Aluminum
Connectors: Stainless Steel
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072 or Chemical Film per
Electrical
RF Power: See table below.
RF Connectors: K-females are standard.
Configuration Options: Connectors can be parallel or opposite in direction (Picture shows connectors perpendicular from each other)
Environmental
Temperature: -45°C to +85°C
Options
Motor Drive Option: Add -SM24 to Part No.
Example: P901-412 becomes P901-412-SM24 with Stepper Motor Option

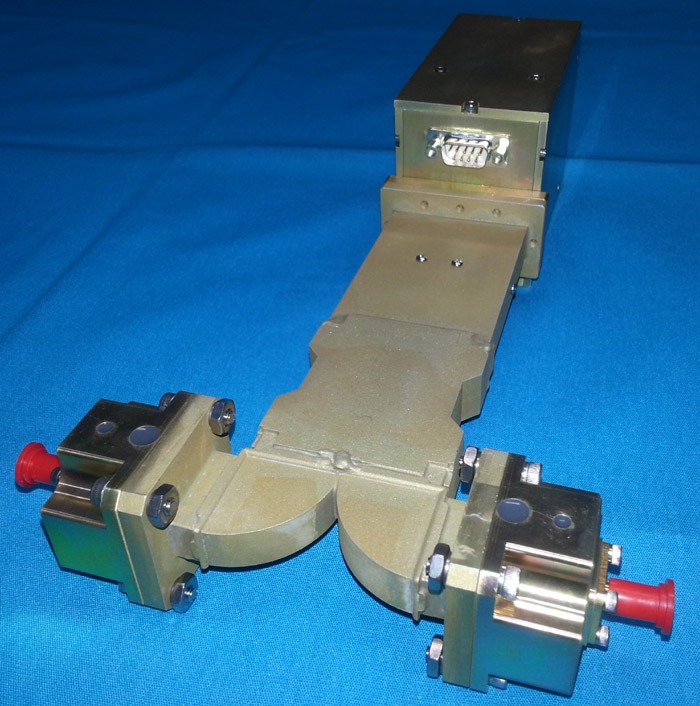

Sample Photo of P901-412-SM24
Outline Drawing of P901-412-SM24

Learn more about Motor Driven Phase Shifters

Very Low Loss Coaxial Phase Shifters
Freq (GHz) VSWR
(Max.)
Phase
(Deg)
Insertion
 Loss (max)
Avg Pwr
(W)
Standard
Model No.
Outline Dwgs
Std - MtrDrv
8.10 - 9.30 1.20 0 to 360 0.25 50 P901-410 Dwg1 - Dwg2
9.10 - 10.2 1.20 0 to 360 0.25 50 P901-411 Dwg1 - Dwg2
9.40 - 10.8 1.20 0 to 360 0.25 50 P901-412 Dwg1 - Dwg2
10.5 - 11.9 1.20 0 to 360 0.25 50 P901-413 Dwg1 - Dwg2
10.0 - 11.6 1.20 0 to 360 0.25 50 P751-410
11.6 - 13.4 1.20 0 to 360 0.25 50 P751-411
13.0 - 15.0 1.20 0 to 360 0.25 50 P751-412
12.4 - 14.0 1.20 0 to 360 0.30 50 P621-410
13.5 - 15.6 1.20 0 to 360 0.30 50 P621-411
15.5 - 18.0 1.20 0 to 360 0.30 50 P621-412
17.6 - 20.0 1.50 0 to 360 1.0 10 P42K-410
19.3 - 22.0 1.50 0 to 360 1.0 10 P42K-411
22.5 - 26.0 1.50 0 to 360 1.0 10 P42K-412
26.3 - 26.7 1.50 0 to 360 1.2 10 P34K-410
26.0 - 30.0 1.50 0 to 360 1.3 10 P28K-410  .pdf
30.0 - 31.0 1.50 0 to 360 1.3 10 P28K-415  .pdf

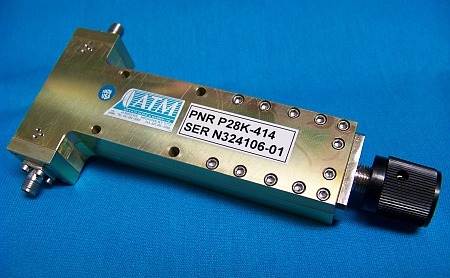

27.5 - 31.2 1.50 0 to 360 1.3 10 P28K-414  .pdf
30.0 - 34.0 1.50 0 to 360 1.3 10 P28K-411  .pdf
33.0 - 36.0 1.50 0 to 360 1.3 10 P28K-416  .pdf
33.5 - 37.0 1.50 0 to 360 1.3 10 P28K-412  .pdf
36.0 - 40.0 1.50 0 to 360 1.3 10 P28K-413  .pdf
43.0 - 45.0 1.50 0 to 360 1.5 10 P22K-410
