Line Stretchers

Ka-Band Coaxial Line Stretchers

Coaxial Line Stretchers for Ka-Band Satcom

ATM manufactures a selection of Coax line stretchers specifically for Ka-Band Satcom applications from 18.3 - 31.0 GHz.

By manufacturing components with a narrower Ka bandwidth, we can offer superior component specifications at a lower cost.

For more information feel free to call us and discuss your needs with one of our design engineers.

Ka-Band Phase Shifters:
Coax Phase Shifters
Coaxial Low Loss Phase Shifters
Waveguide Phase Shifters

Coaxial:
Coaxial Line Stretchers
Coaxial Phase Shifters

Waveguide:
Waveguide Phase Shifters

P191x Series Line Stretchers - Ka-Band Satcom Models
Downlink 18.3-20.3 GHz, Uplink 27.5-31.0 Ghz, Full 18.3-31.0 GHz
  • Smooth continuous phase change.
  • Locking Device Included.
  • 2.9mm connectors available.
  • Instruction for Mounting and operation



Coaxial Line Stretcher - SMA Connector

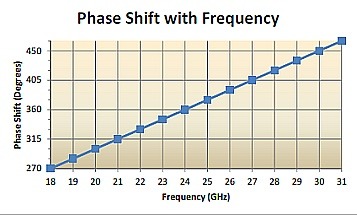

Ka-Band Line Stretchers - Phas Shift Chart GENERAL SPECIFICATIONS

Electrical
RF Connectors:  2.9mm (K) F/F
Impedance: 50 Ohm
Insertion Phase @ 1.0 GHz: 90° (min. setting)
RF Power: 50W average, 3kW peak
Mechanical
Body: Brass, Nickel Plated
Connectors: Stainless Steel
Operating Temp: -54°C to +115°C
Applicable Mil-Specs
General:
Product Specific:

Standard Models
Model No. Freq. (GHz) VSWR
max
Min. Phase
Adjust
I.L.
dB max
P1918Ka 18.3 - 21.0 TBA 15°/GHz TBA
P1919Ka 27.5 - 31.0 TBA 15°/GHz TBA
P191Ka 18.3 - 31.0 TBA 15°/GHz TBA
