You are here: Home / Ka-Band Components / Ka-Band Coaxial / Phase Shifters

Phase Shifters

Phase Shifters For Ka-Band

30°/GHz Phase Shifters For Satcom Ka-Band

ATM manufactures a Ka-Band specific Phase shifters to work in the Satcom Frequency range 18.0-31.0GHz.

By manufacturing components with a narrower Ka bandwidth, we can offer superior component specifications at a lower cost.

For more information feel free to call us and discuss your needs with one of our design engineers.

Ka-Band Phase Shifters:
Ka-Band Line Stretchers
Ka-Band Low Loss Phase Shifters
Ka-Band Waveguide Phase Shifters

Coaxial:
Coaxial Line Stretchers
Coaxial Phase Shifters

Waveguide:
Waveguide Phase Shifters

30°/GHz Phaseshifters - Series P140 & P240 - Standard Model

Standard Model has mechanical adjustment with screwdriver shaft and locknut

30°/GHz Phaseshifters - Series P140 & P240 - Digital Counting Dial Option

For Digital Counting Dial Option add "D" suffix to the Model Number
Example P/N: P1408Ka becomes: P1408KaD

30°/GHz Phaseshifters - Series P140 & P240 - Direct Reading Option

For Direct Reading Option add "DRE" suffix to the Model Number Example P/N: P1408Ka becomes: P1408KaDRE

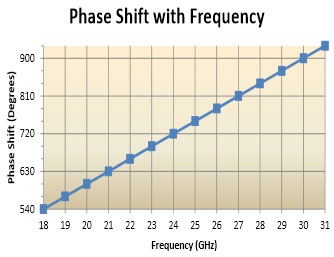

 Ka-Band Phase Shifters - Phase Shift Chart
30°/GHz PHASESHIFTERS
GENERAL SPECIFICATIONS ( All Options )

Electrical
RF Power: 100W average, 3kW peak
RF Connectors: SMA, 2.9mm (K-Type)
Min. Adjustable Phase shift: 0 to 30°/GHz. +/- 0.35°/GHz Dial Accuracy for DRE Models
Adjustable Group Delay min: 0 to 0.085 ns
Insertion Phase @ 18.0 GHz: 4320° (min setting)

Mechanical
Size: 3.75" x 2.0" x 1.0"
Body: Aluminum
Connectors: Stainless Steel
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
General:
Product Specific:



30° Phase Shifters - Ka-Band Satcom Models
Model No.*
(SMA, 2.9mm)
Freq (GHz) Min. Phase Adjust I.L
dB max
VSWR
max
P1408Ka 18.3 - 21.0 0 - 360° 1.5 1.5
P1409Ka 27.5 - 31.0 0 - 360° 2.1 1.8
P140Ka 18.0 - 31.0 0 - 360° 2.1 1.9
Motor Drive Option available for remote applications - click here for Outline Drawing
Note:
* Model P1408Ka uses SMA F connectors
* Model P1409Ka and P140Ka use 2.9mm F connectors
