Phase Shifter Line Stretcher High Power

High Power Waveguide Phase Shifters

ATM type 410 Waveguide Phase Shifters utilize hybrid design, making it ideal for high power and low loss. The phase shift is approximately linear with dial rotation, but not frequency. These models have 0-360 deg min phase shift over the operating frequency range and are precisely adjustable and re-settable. The standard models are supplied with digital counting dials so models can be calibrated at a spot frequency or re-set to a desired point.

For Direct Reading Models add DRE to the P/N. These units are supplied with electronic digital dials calibrated in degrees at the center frequency. Please call us and discuss your needs with one of our design engineers.

High Power Waveguide Phase Shifters / Line Stretchers

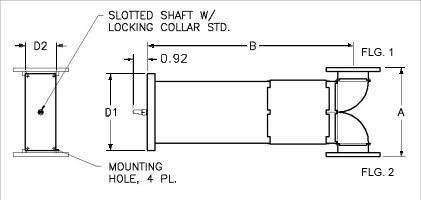

WG Size	Freq. (GHz)	Power (W) Avg.	Power (kW) Peak	VSWR max	IL (dB) max	A (in)	B (in) max	D1 (in) max	D2 (in) max	Standard Model No.*	Otln.
WR284	2.66 - 2.99	11,500	2500.0	1.20	0.25	10.25	20.15	7.22	2.70	284-410-6-6
WR284	2.80 - 3.20	11,500	2500.0	1.20	0.25	10.25	20.15	7.22	2.70	284-413-6-6
WR284	2.99 - 3.44	11,500	2500.0	1.20	0.25	10.25	20.15	7.22	2.70	284-411-6-6
WR284	3.44 - 3.95	11,500	2500.0	1.20	0.25	10.25	20.15	7.22	2.70	284-412-6-6
WR229	3.70 - 4.20	7200	1640.0	1.20	0.25	9.75	19.0	6.00	3.00	229-410-2-2
WR187	3.95 - 4.50	5000	925.0	1.20	0.25	5.80	13.0	5.03	2.00	187-410-6-6
WR187	4.50 - 5.20	5000	925.0	1.20	0.25	5.80	13.0	5.03	2.00	187-411-6-6
WR187	5.20 - 5.90	5000	925.0	1.20	0.25	5.80	13.0	5.03	2.00	187-412-6-6
WR159	5.40 - 5.90	4000	753.0	1.20	0.25	5.38	10.75	4.20	1.60	159-410-2-2
WR159	5.90 - 6.50	4000	753.0	1.20	0.25	5.38	10.75	4.20	1.60	159-411-2-2
WR137	5.40 - 6.00	3500	515.0	1.20	0.25	4.70	9.60	3.80	1.60	137-410-2-2
WR137	6.00 - 7.00	3500	515.0	1.20	0.25	4.70	9.60	3.80	1.60	137-411-2-2
WR137	6.85 - 7.80	3500	515.0	1.20	0.25	4.70	9.60	3.80	1.60	137-412-2-2
WR137	7.15 - 8.20	3500	515.0	1.20	0.25	4.70	9.60	3.80	1.60	137-413-2-2
WR112	6.90 - 8.00	2200	307.0	1.20	0.25	4.40	7.40	3.22	1.40	112-410-6-6
WR112	7.90 - 9.00	2200	307.0	1.20	0.25	4.40	7.40	3.22	1.40	112-411-6-6
WR112	8.80-10.25	2200	307.0	1.20	0.25	4.40	7.40	3.22	1.40	112-412-6-6
WR90	8.10 - 9.30	1100	175.0	1.20	0.25	3.25	6.40	2.58	1.60	90-410-6-6
WR90	8.60 - 10.0	1100	175.0	1.20	0.25	3.25	6.75	2.58	1.60	90-414-6-6
WR90	9.10 - 10.2	1100	175.0	1.20	0.25	3.25	6.40	2.58	1.60	90-411-6-6
WR90	9.40 - 10.8	1100	175.0	1.20	0.25	3.25	6.40	2.58	1.60	90-412-6-6
WR90	10.5 - 11.9	1100	175.0	1.20	0.25	3.25	6.40	2.58	1.60	90-413-6-6
WR75	10.0 - 11.6	900	136.4	1.20	0.25	2.80				75-410-6-6
WR75	11.6 - 13.4	900	136.4	1.20	0.25	2.80				75-411-6-6
WR75	13.0 - 15.0	900	136.4	1.20	0.25	2.80				75-412-6-6
WR62	12.4 - 14.0	600	98.9	1.20	0.30	2.70	4.40	1.77	1.35	62-410-6-6
WR62	13.5 - 15.6	600	98.9	1.20	0.30	2.70	4.40	1.77	1.35	62-411-6-6
WR62	15.5 - 17.5	600	98.9	1.20	0.30	2.70	4.40	1.77	1.35	62-412-6-6
WR51	15.5 - 17.5	400	65.0	1.20	0.30	2.40				51-410-6-6
WR51	17.35 - 19.65	400	65.0	1.20	0.30	2.40				51-411-6-6
WR42	17.6 - 20.0	320	34.0	1.25	0.30	2.00	4.25	1.39	0.90	42-410-6-6
WR42	19.3 - 22.0	320	34.0	1.25	0.30	2.00	4.25	1.39	0.90	42-411-6-6
WR42	22.5 - 26.0	320	34.0	1.25	0.30	2.00	4.25	1.39	0.90	42-412-6-6
WR28	26.0 - 30.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-410-6-6
WR28	30.0 - 31.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-415-6-6
WR28	27.5 - 31.2	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-414-6-6
WR28	30.0 - 34.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-411-6-6
WR28	33.0 - 36.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-416-6-6
WR28	33.5 - 37.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-412-6-6
WR28	36.0 - 40.0	160	18.0	1.25	0.30	1.90	4.0	1.39	1.30	28-413-6-6

Ordering Information High Power Waveguide Phase Shifter / Line Stretcher	WR	-Mod	-F1	-F2	/Opt
Example part number:	137	-410	-2	-2	/DRE
Waveguide Size: (WR) WR28 thru WR284 available
Basic Model No.: (-Mod)
Flange 1 (-F1): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
Flange 2 (-F2): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke See ATM Standard Flange page for more info.
Options (/Opt): /DRE = Direct Reading Dial /SM24 = Stepper Motor Drive (This may also be left blank for "no options")

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system to the left.

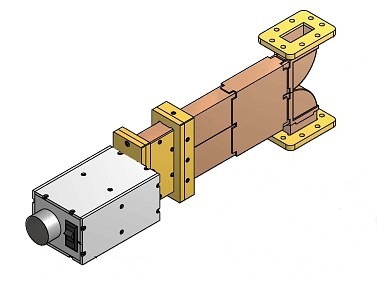

Motor Driven Waveguide Phase Shifters / Line Stretchers
	GENERAL SPECIFICATIONS ( MOTOR DRIVE UNIT ONLY) Electrical Motor Drive Connector: 9-Pin D-Sub (male) Voltage: 18-30VDC Mechanical Body: Aluminum Construction Operating Temp: Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072 Click here to view an Outline .pdf of a typical Motor-Driven High Power Waveguide Phase Shifter

Motor Driven Waveguide Phase Shifters / Line Stretchers

GENERAL SPECIFICATIONS
( MOTOR DRIVE UNIT ONLY)

Electrical
Motor Drive Connector: 9-Pin D-Sub (male) Voltage: 18-30VDC

Mechanical
Body: Aluminum Construction
Operating Temp:
Finish: Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072

Click here to view an Outline .pdf of a typical Motor-Driven High Power Waveguide Phase Shifter
