Line Stretcher

P191 (SMA) Series Line Stretchers
Smooth continuous phase change. Locking Device Included. SMA connectors available. Light weight aluminum housing. Outline Drawing Instruction for Mounting and operation Detailed VSWR and Insertion Loss Data
	GENERAL SPECIFICATIONS
	Electrical RF Connectors: SMA F/F Impedance: 50 Ohm Insertion Phase @ 1.0 GHz: 90° (min. setting) RF Power: 50W average, 3kW peak Mechanical Body: Aluminum Connectors: Stainless Steel Operating Temp: -54°C to +115°C Applicable Mil-Specs General: Product Specific:

Standard P191 SMA Line Stretcher Models
Freq GHz	VSWR max	Min Phase Adjust	I.L. dB max	Model No.
DC-2.3	1.25	15°/GHz	0.2	P1913
DC-4.3	1.3	15°/GHz	0.25	P1914
DC-8.2	1.4	15°/GHz	0.30	P1915
DC-12.7	1.5	15°/GHz	0.5	P1916
DC-18.6	1.5	15°/GHz	0.6	P1917

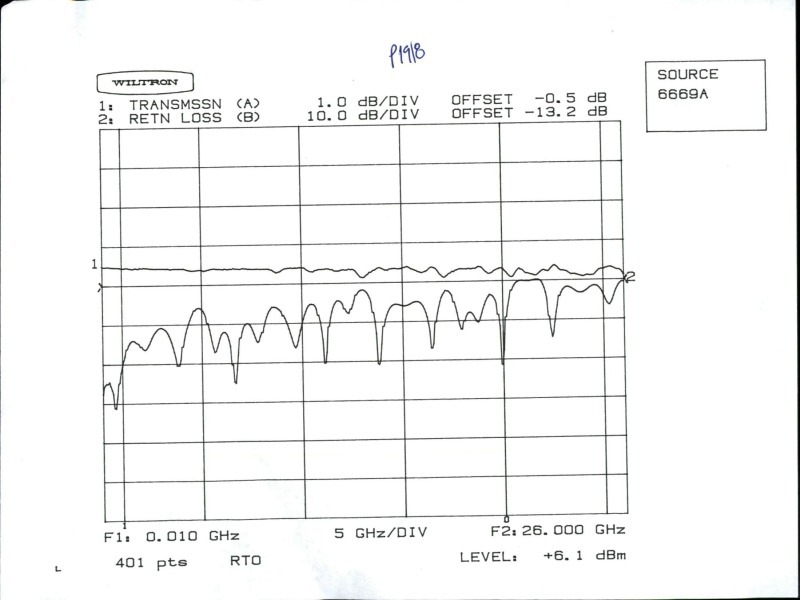

DC-26.5	1.6	15°/GHz	0.8	P1918

P291 (Type-N) Series Line Stretchers
Light weight aluminum housing Smooth continuous phase change Locking Device Included Outline drawing Instruction for Mounting and operation Detailed VSWR and Insertion Loss Data
	GENERAL SPECIFICATIONS
	Electrical RF Connectors: Type-N F/F Impedance: 50 Ohm Insertion Phase @ 1.0 GHz: RF Power: 50W average, 3kW peak Mechanical Body: Aluminum Connectors: Stainless Steel Operating Temp: -54°C to +115°C Applicable Mil-Specs General: Product Specific:

Standard P291 Type-N Line Stretcher Models
Freq GHz	VSWR max	Min Phase Adjust	I.L. dB max	Model No.
DC-2.3	1.35	15°/GHz	0.2	P2913
DC-4.3	1.4	15°/GHz	0.3	P2914
DC-8.2	1.5	15°/GHz	0.5	P2915
DC-12.7	1.6	15°/GHz	0.5	P2916
DC-18.0	1.7	15°/GHz	0.7	P2917
