Attenuators

Waveguide Attenuators For Microwave RF

Attenuators For Microwave Waveguides

A waveguide attenuator is an RF device specifically designed to reduce the power of a signal without affecting or reducing the waveform of the signal.

ATM manufactures waveguide attenuators in WG Sizes from WR650 thru WR28 covering a wide array of frequencies. We also offer high power and continuously variable  waveguide attenuators.

A waveguide attenuator works exactly opposite of an amplifier which increases the power of the signal without altering the waveform. Amplifiers provide an increase (or gain) in the power output whereas an attenuator provides a loss of power (or a gain less than 1).

Waveguide Attenuators:
Low Power Fixed Attenuators
Low Power Fixed Precision
High Power Fixed Precision
Variable Attenuators

Coaxial:
Coaxial Attenuators

Ka-Band:
Ka-Band Coaxial Attenuators
Ka-Band Waveguide Attenuators

Low Power Fixed Attenuators Low Power Fixed Precision Attenuators
Rectangular Waveguide Fixed Attenuator
Low Power Precision Attenuator
Low Power Precision Attenuator
Continuously Variable Attenuators High Power Fixed Precision Attenuators

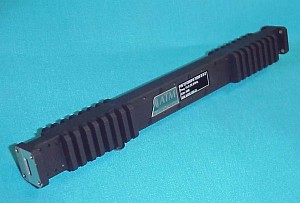

Waveguide Continuously Variable Attenuator High Power Precision Waveguide Fixed Attenuator



Types of Waveguide Attenuators:

  • Fixed Low Power Attenuator - Signal loss is constant and cannot be changed.
  • Fixed Low Power Precision Attenuator - Signal loss is fixed and high precision elements are used.
  • Fixed High Power Precision Attenuator- Precision elements yield optimum electrical performance at high power.
  • Continuously Variable Attenuator - Also known as CVA, where the signal loss can be changed using a mechanical adjustment screw, knob or dial.

Check out our Waveguide Components Menu for a complete list of Waveguide components.
