Video Detector High Sensitivity

Video Detectors, High Sensitivity For Waveguide

High Sensitivity Waveguide Video Detectors

Narda-MITEQ manufactures Video Detectors covering a limited frequency range for Rectangular Waveguides, with multiple flange configurations available.  For more information feel free to call us and discuss your needs with one of our design engineers.

See Also:
Waveguide Components Menu

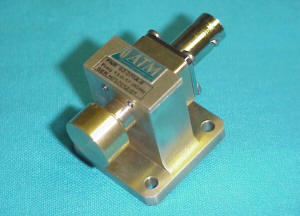

Rectangular Waveguide Video Detectors - High Sensitivity

zbotwa7

Electrical
Input Power: 100 mW Max.
RF Connectors: BNC-(F) standard (Other connectors such as BNC-(M) are available. Consult Factory)
Diode Type: Zero-Bias Schottky
Polarity: (-) Negative standard,  (+) Positive available
Mechanical
Body: Aluminum
Connectors: Stainless Steel
Operation Temp: -40°C to 85°C
Finish: Chromate + Unique corrosion resistant 316 stainless steel epoxy coating IAW MIL-F-14072
Applicable Mil-Specs
General:
Product Specific:

Standard Models
WG Size Freq (GHz) BNC-(F)
Model No.*
Sensitivity
TSS @ 1MHz
Outline
Drawing
WR90 8.0 - 11.0 90-270A-6 50 dB Typical Dwg
WR75 11.0 - 15.0 75-270A-6 49 dB Typical
WR62 13.0 - 17.0 62-270A-6 46 dB Typical

Ordering Information
Rectangular Waveguide
Video Detector

WR -Mod M -F
Example part number:  90 -270 A -6
Waveguide Size: (WR)
WR62 thru WR90 available

Basic Model No.: (-Mod)
Material (M): A=Aluminum
Flange (-F): 1=CPRG, 2=CPRF, 6=Cover, 7=Choke
See Narda-MITEQ Standard Flange page for more info.


* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered for your needs by using the Model # code system at left.

BNC-(F) Connector is standard. Other connector options such as BNC-(M) are available. Consult factory for more information.
